SKU: SILKAC12M-CDX

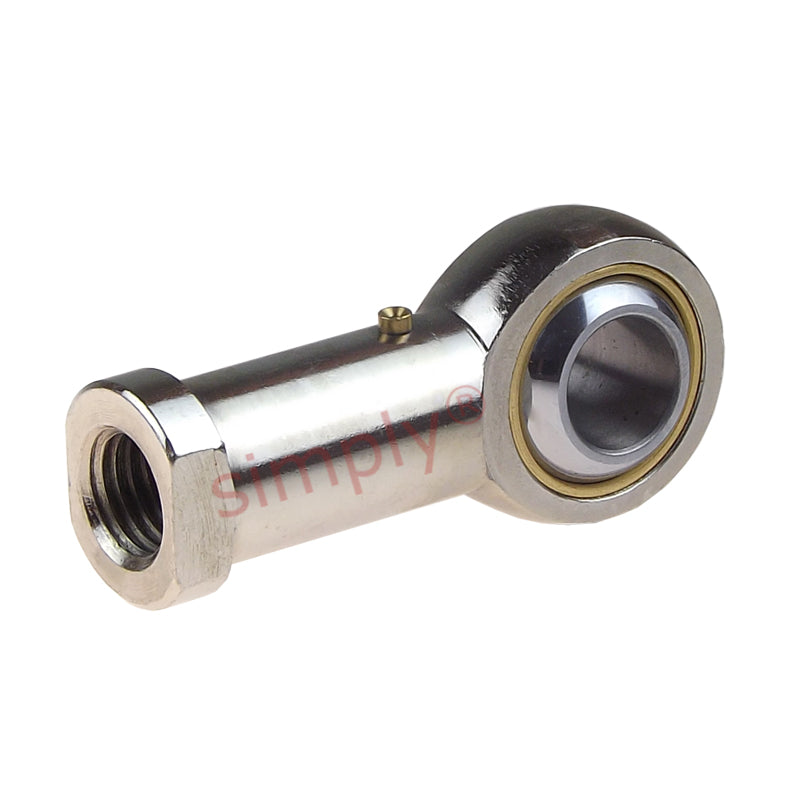

Codex SILKAC12M Left Hand Steel / Bronze Lined Plain Female Rod End M12 Thread
Codex SILKAC12M Left Hand Steel / Bronze Lined Plain Female Rod End M12 Thread
Regular price
£16.05
ex VAT£19.26inc. VAT
Regular price
Sale price
£16.05
ex VAT£19.26
inc. VAT
Equivalent to: TSFL12 PHSL12 SILBP12S PHS12L FBL-M12
In stock
Price Break
10+
£14.28
19+
£13.48
29+
£13.32
39+
£13.16
49+
£13.00
74+
£12.84
99+
£12.04
199+
£11.88
249+
£11.72
499+
£11.56
999+
£11.23
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: TSFL12 PHSL12 SILBP12S PHS12L FBL-M12
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 33mm |
| G | M12 |
| B | 16mm |
| C1 max | 12mm |
| h1 | 50mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 13.4 kN |
| Static load | 14 kN |
| dk | 22.2mm |
| d3 | 17.5mm |
| d4 max | 23mm |
| l3 min | 18mm |
| l4 max | 68mm |
| l5 | 6.5mm |
| l7 min | 16mm |
| r1 min | 0.3mm |
| w | 19mm |
| Weight | 0.11 kg |
