SKU: SIL6C-SKF

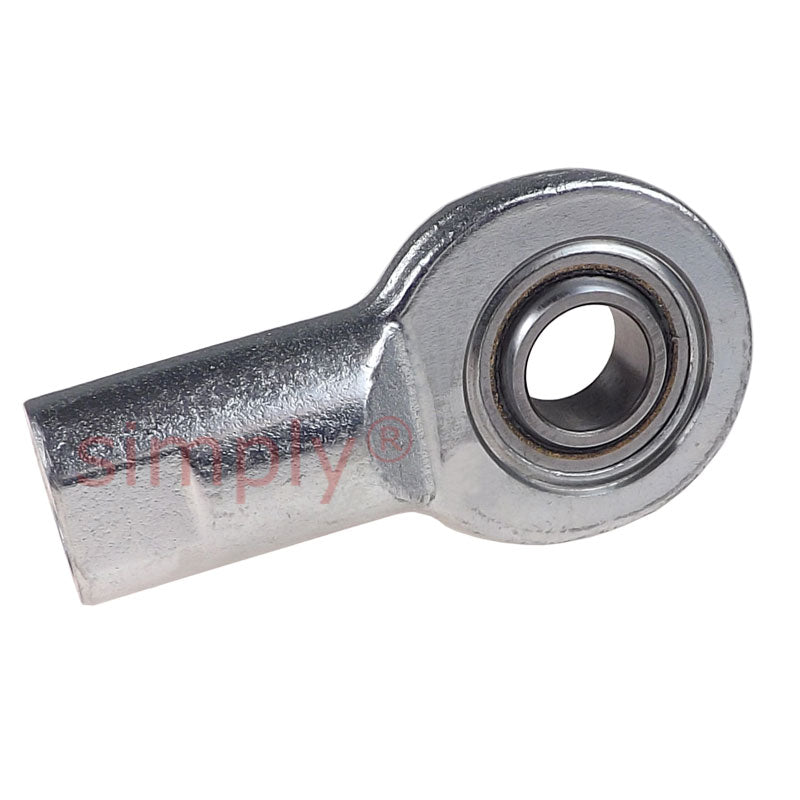

SKF SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread

Name: SKF SIL6C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M6 Thread
Brand: SKF
SKU: SIL6C-SKF
Price: 73.20 GBP
Availability: InStock

£73.20 ex VAT£87.84inc. VAT

£73.20 ex VAT£87.84 inc. VAT

Sale Sold out

Equivalent to: GIL6UK

In stock

Price Break

10+ £65.15

19+ £61.49

29+ £60.76

39+ £60.03

49+ £59.30

74+ £58.56

99+ £54.90

199+ £54.17

249+ £53.44

499+ £52.71

999+ £51.24

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Equivalent: GIL6UK

Brand / Quality:: SKF - High Quality
Thread Size:: M6
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: PTFE Sintered Bronze Lined

Technical

d	6mm
d2 max	22mm
G 6H	M6
B	6mm
C1 max	4.5mm
h1	30mm
a	13deg
Dynamic load C	3.6 kN
Static load Co	8.15 kN
Weight	0.023 kg
dk	10mm
d4	11mm
l3 min	11mm
l4 max	43mm
l5	8mm
l7 min	10mm
r1 min	0.3mm
w h14	9mm
