SKU: SIL50TXE-2LS-SKF

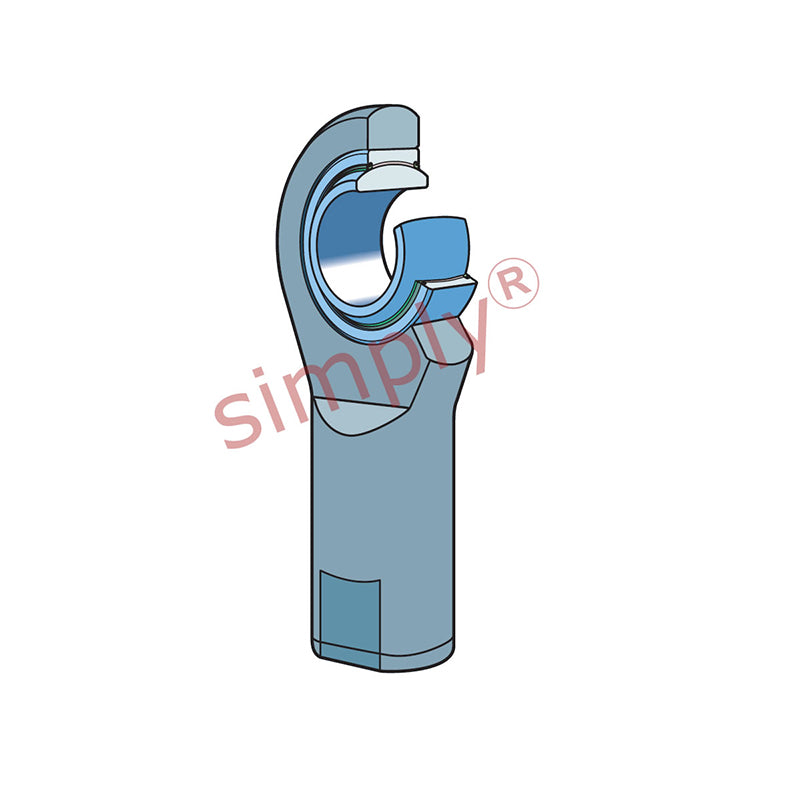

SKF SIL50TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M52x3 Thread
SKF SIL50TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M52x3 Thread
Regular price
£441.55
ex VAT£529.86inc. VAT
Regular price
Sale price
£441.55
ex VAT£529.86
inc. VAT
In stock
Price Break
10+
£392.98
19+
£370.90
29+
£366.49
39+
£362.07
49+
£357.66
74+
£353.24
99+
£331.16
199+
£326.75
249+
£322.33
499+
£317.92
999+
£309.09
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M52x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 50mm
- Liner Type:
- PTFE Fabric Lined
Technical
Technical
| d | 50mm |
|---|---|
| d2 max | 114mm |
| G 6H | M52x3 |
| B | 35mm |
| C1 max | 31mm |
| h1 | 195mm |
| a | 6deg |
| Dynamic load C | 440 kN |
| Static load Co | 270 kN |
| Weight | 4.5 kg |
| dk | 66mm |
| d4 | 70mm |
| l3 min | 68mm |
| l4 max | 254mm |
| l5 | 30mm |
| l7 min | 58mm |
| r1 min | 0.6mm |
| w h14 | 60mm |
