SKU: SIL10C-SKF

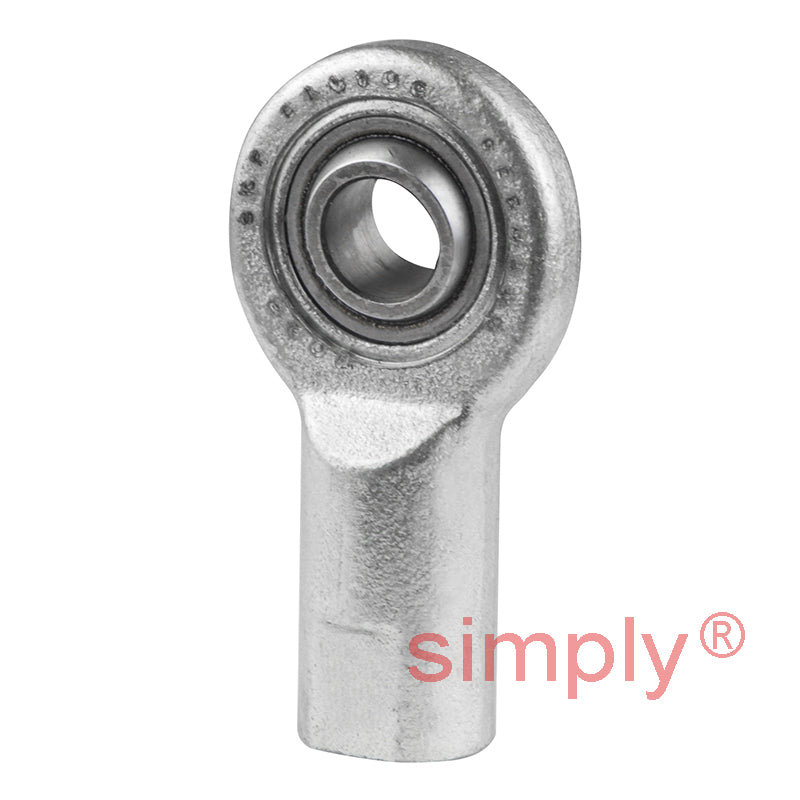

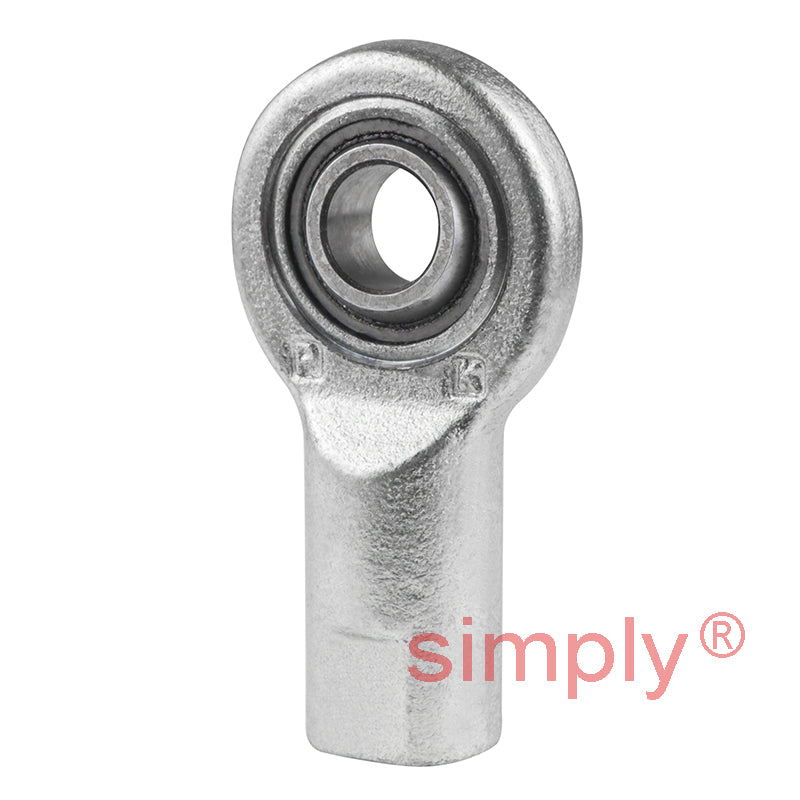

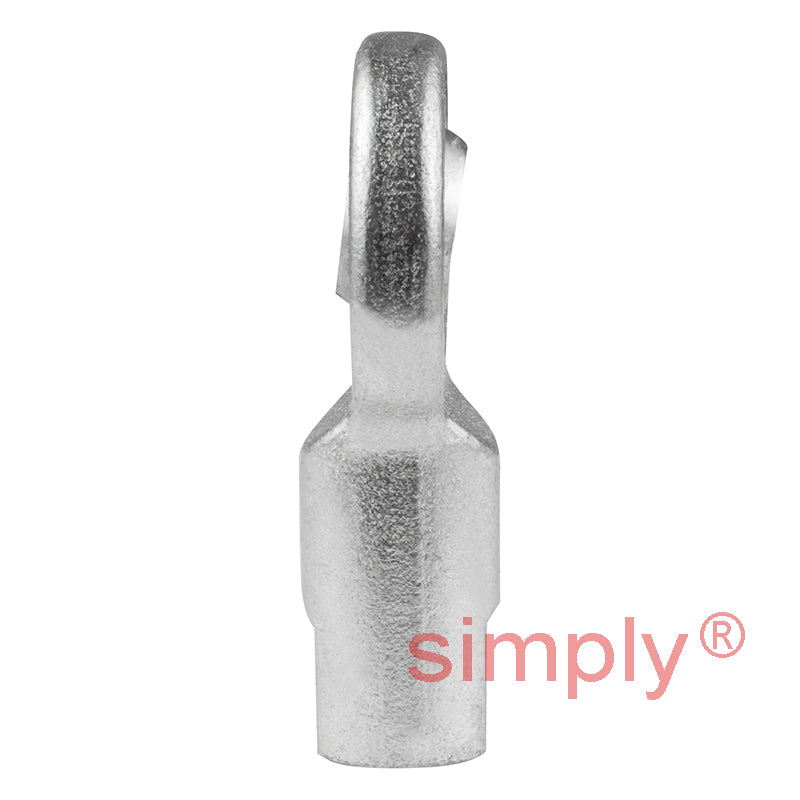

SKF SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread

Name: SKF SIL10C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M10 Thread
Brand: SKF
SKU: SIL10C-SKF
Price: 61.06 GBP
Availability: InStock

£61.06 ex VAT£73.27inc. VAT

£61.06 ex VAT£73.27 inc. VAT

Sale Sold out

Equivalent to: GIL10UK

In stock

Price Break

10+ £54.35

19+ £51.29

29+ £50.68

39+ £50.07

49+ £49.46

74+ £48.85

99+ £45.80

199+ £45.19

249+ £44.58

499+ £43.97

999+ £42.74

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite.

Equivalent: GIL10UK

Brand / Quality:: SKF - High Quality
Thread Size:: M10
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 10mm
Material:: PTFE Sintered Bronze Lined

Technical

d	10mm
d2 max	30mm
G 6H	M10
B	9mm
C1 max	7.5mm
h1	43mm
a	12deg
Dynamic load C	8.65 kN
Static load Co	19 kN
Weight	0.065 kg
dk	16mm
d4	16mm
l3 min	15mm
l4 max	60mm
l5	11mm
l7 min	13mm
r1 min	0.3mm
w h14	14mm
