SKU: SIKAC6M-CDX

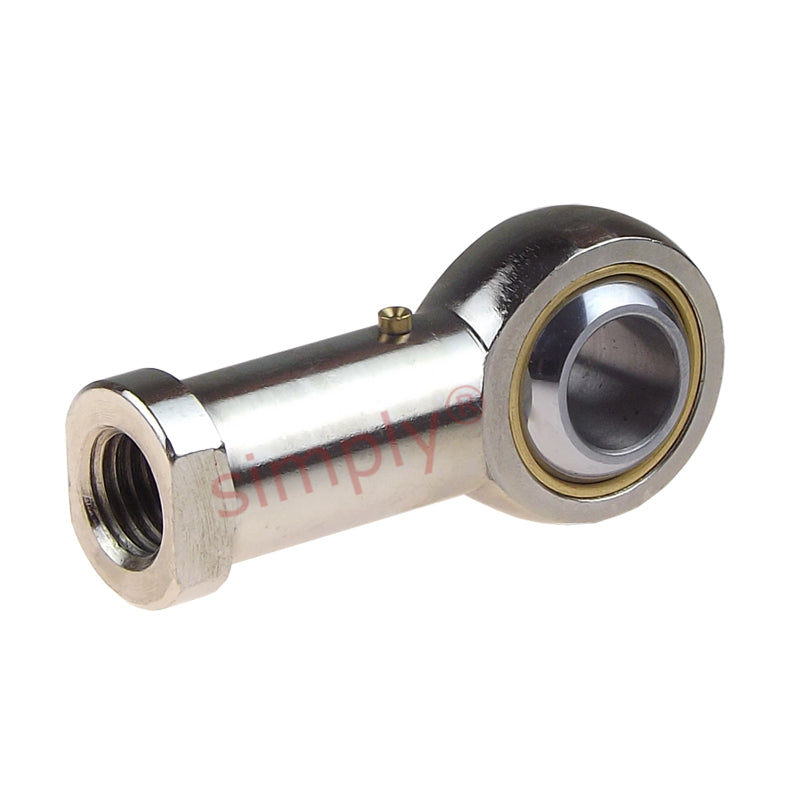

Codex SIKAC6M Right Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
Codex SIKAC6M Right Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
Regular price
£9.52
ex VAT£11.42inc. VAT
Regular price
Sale price
£9.52
ex VAT£11.42
inc. VAT
Equivalent to: GIKF6PB TSF6 SIBP6S PHS6 SF6 FB-M06
In stock
Price Break
10+
£8.48
19+
£8.00
29+
£7.90
39+
£7.81
49+
£7.71
74+
£7.62
99+
£7.14
199+
£7.05
249+
£6.95
499+
£6.86
999+
£6.67
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: GIKF6PB TSF6 SIBP6S PHS6 SF6 FB-M06
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Material:
- Bronze Lined
Technical
Technical
| d | 6mm |
|---|---|
| d2 max | 21mm |
| G | M6 |
| B | 9mm |
| C1 max | 6.75mm |
| h1 | 30mm |
| Max misalignment angle | 13 degrees |
| Dynamic load | 4.3 kN |
| Static load | 5.4 kN |
| dk | 12.7mm |
| d3 | 10mm |
| d4 max | 14mm |
| l3 min | 9mm |
| l4 max | 42mm |
| l5 | 5mm |
| l7 min | 10mm |
| r1 min | 0.3mm |
| w | 11mm |
| Weight | 0.025 kg |
