SKU: SFT60-RHP

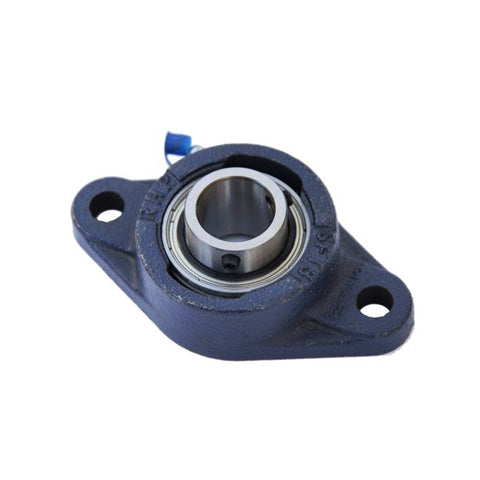

RHP SFT60 Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
RHP SFT60 Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
Regular price
£125.86
ex VAT£151.03inc. VAT
Regular price
Sale price
£125.86
ex VAT£151.03
inc. VAT
In stock
Price Break
10+
£112.01
20+
£105.72
30+
£104.46
40+
£103.20
50+
£101.94
75+
£100.69
100+
£94.39
200+
£93.13
250+
£91.88
500+
£90.62
1000+
£88.10
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- SFT
- Bolt Hole Centres:
- 202mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 138.1mm |
| H | 235mm |
| J | 202mm |
| G | 16mm |
| A | 47.6mm |
| A1 | 73.69mm |
| A4 | 17.5mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
