SKU: SFT55-RHP

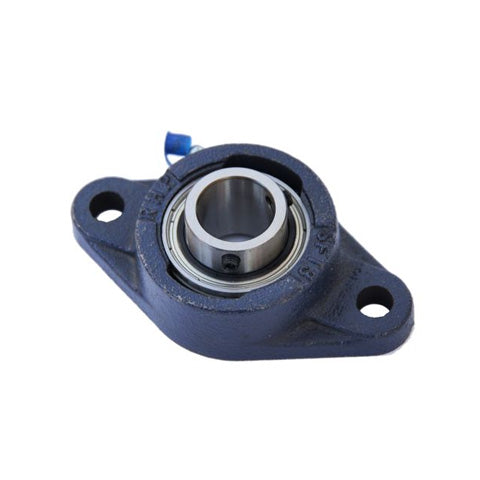

RHP SFT55 Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
RHP SFT55 Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
Regular price
£103.40
ex VAT£124.08inc. VAT
Regular price
Sale price
£103.40
ex VAT£124.08
inc. VAT
In stock
Price Break
10+
£92.03
20+
£86.86
30+
£85.83
40+
£84.79
50+
£83.76
75+
£82.72
100+
£77.55
200+
£76.52
250+
£75.49
500+
£74.45
1000+
£72.38
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- SFT
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 127mm |
| H | 215.9mm |
| J | 184mm |
| G | 16mm |
| A | 43.7mm |
| A1 | 64.31mm |
| A4 | 17.5mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
