SKU: SFT50EC-RHP

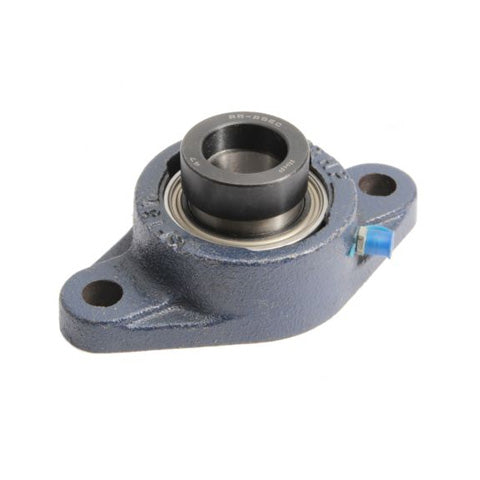

RHP SFT50EC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
RHP SFT50EC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Regular price
£84.46
ex VAT£101.35inc. VAT
Regular price
Sale price
£84.46
ex VAT£101.35
inc. VAT
In stock
Price Break
10+
£75.17
20+
£70.94
30+
£70.10
40+
£69.25
50+
£68.41
75+
£67.56
100+
£63.34
200+
£62.50
250+
£61.65
500+
£60.81
1000+
£59.12
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SFT
- Bolt Hole Centres:
- 157mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.9mm |
| H | 188.9mm |
| J | 157mm |
| G | 16mm |
| A | 39.7mm |
| A2 | 60.6mm |
| A4 | 14.3mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
