SKU: SFT50-RHP

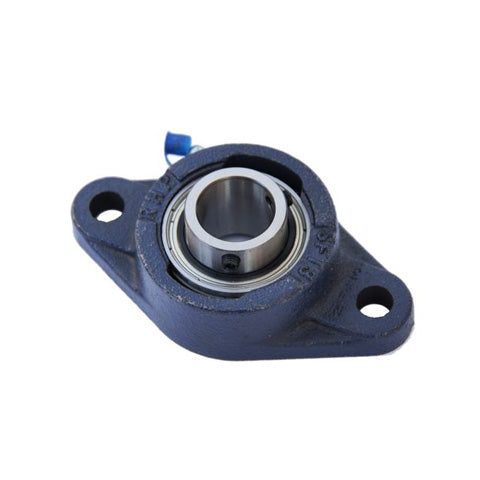

RHP SFT50 Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
RHP SFT50 Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Regular price
£78.01
ex VAT£93.61inc. VAT
Regular price
Sale price
£78.01
ex VAT£93.61
inc. VAT
In stock
Price Break
10+
£69.43
20+
£65.53
30+
£64.75
40+
£63.97
50+
£63.19
75+
£62.41
100+
£58.51
200+
£57.73
250+
£56.95
500+
£56.17
1000+
£54.61
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SFT
- Bolt Hole Centres:
- 157mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.9mm |
| H | 188.9mm |
| J | 157mm |
| G | 16mm |
| A | 39.7mm |
| A1 | 60.53mm |
| A4 | 14.3mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
