SKU: SFT45EC-RHP

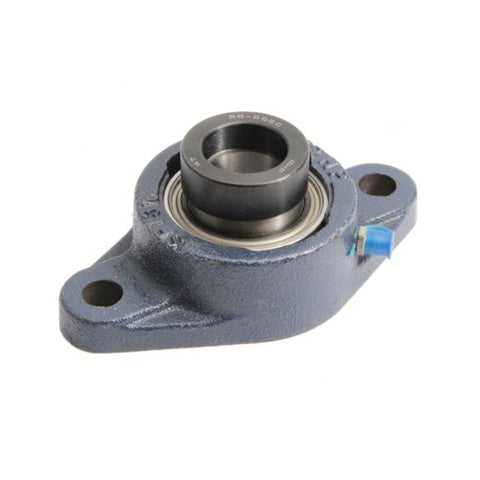

RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Regular price
£75.58
ex VAT£90.70inc. VAT
Regular price
Sale price
£75.58
ex VAT£90.70
inc. VAT
In stock
Price Break
10+
£67.27
20+
£63.49
30+
£62.73
40+
£61.98
50+
£61.22
75+
£60.46
100+
£56.69
200+
£55.93
250+
£55.17
500+
£54.42
1000+
£52.91
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A2 | 56.62mm |
| A4 | 14.3mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
