SKU: SFT45DEC-RHP

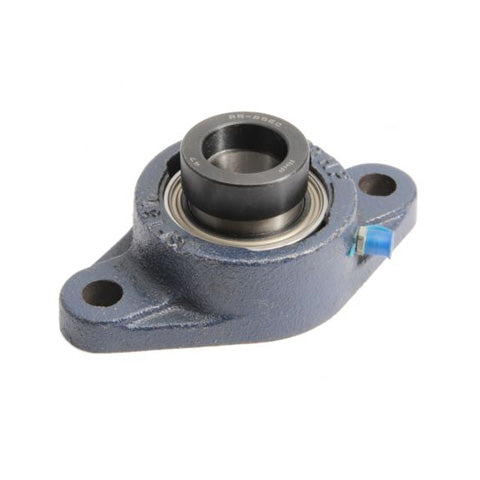

RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Regular price
£86.07
ex VAT£103.28inc. VAT
Regular price
Sale price
£86.07
ex VAT£103.28
inc. VAT
In stock
Price Break
10+
£76.60
20+
£72.30
30+
£71.44
40+
£70.58
50+
£69.72
75+
£68.86
100+
£64.55
200+
£63.69
250+
£62.83
500+
£61.97
1000+
£60.25
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A3 | 58.9mm |
| A4 | 14.3mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
