SKU: SFT40EC-RHP

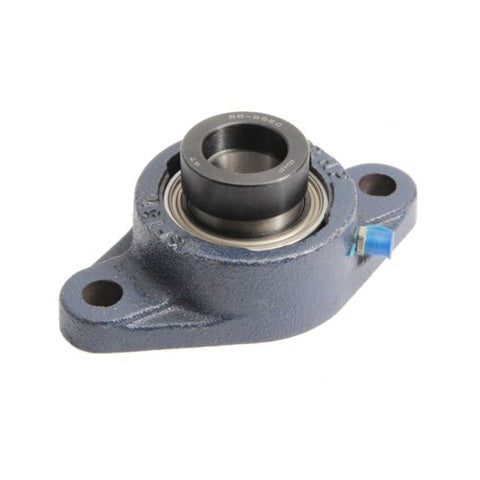

RHP SFT40EC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
RHP SFT40EC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Regular price
£63.59
ex VAT£76.31inc. VAT
Regular price
Sale price
£63.59
ex VAT£76.31
inc. VAT
In stock
Price Break
10+
£56.60
20+
£53.42
30+
£52.78
40+
£52.15
50+
£51.51
75+
£50.88
100+
£47.70
200+
£47.06
250+
£46.42
500+
£45.79
1000+
£44.52
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- SFT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 101.6mm |
| H | 171.4mm |
| J | 143.5mm |
| G | 12mm |
| A | 34.9mm |
| A2 | 56.62mm |
| A4 | 12.7mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 60.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
