SKU: SFT40DEC-RHP

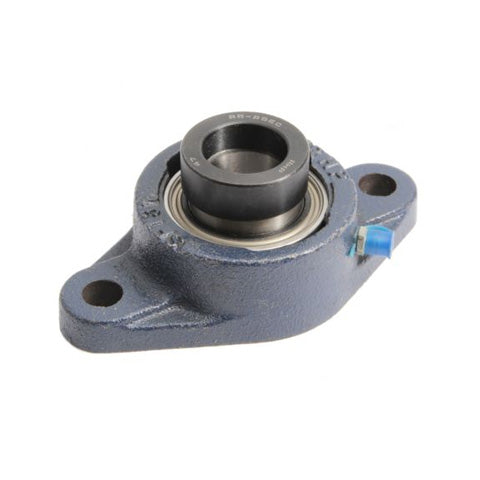

RHP SFT40DEC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
RHP SFT40DEC Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Regular price
£72.77
ex VAT£87.32inc. VAT
Regular price
Sale price
£72.77
ex VAT£87.32
inc. VAT
In stock
Price Break
10+
£64.76
20+
£61.12
30+
£60.40
40+
£59.67
50+
£58.94
75+
£58.21
100+
£54.57
200+
£53.85
250+
£53.12
500+
£52.39
1000+
£50.94
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- SFT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 101.6mm |
| H | 171.4mm |
| J | 143.5mm |
| G | 12mm |
| A | 34.9mm |
| A3 | 58.9mm |
| A4 | 12.7mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
