SKU: SFT40-RHP

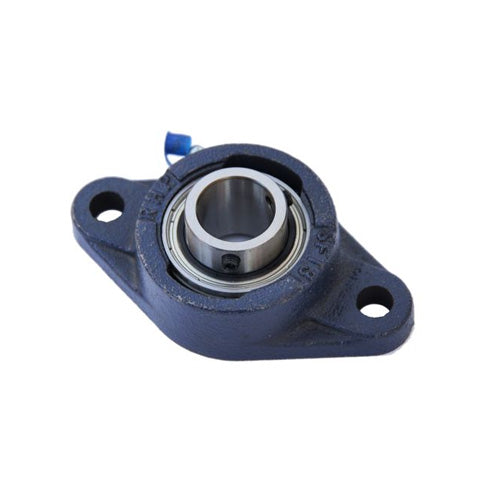

RHP SFT40 Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
RHP SFT40 Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Regular price
£55.35
ex VAT£66.42inc. VAT
Regular price
Sale price
£55.35
ex VAT£66.42
inc. VAT
In stock
Price Break
10+
£49.26
20+
£46.49
30+
£45.94
40+
£45.39
50+
£44.83
75+
£44.28
100+
£41.51
200+
£40.96
250+
£40.41
500+
£39.85
1000+
£38.75
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- SFT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 101.6mm |
| H | 171.4mm |
| J | 143.5mm |
| G | 12mm |
| A | 34.9mm |
| A1 | 54.18mm |
| A4 | 12.7mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
