SKU: SFT35EC-RHP

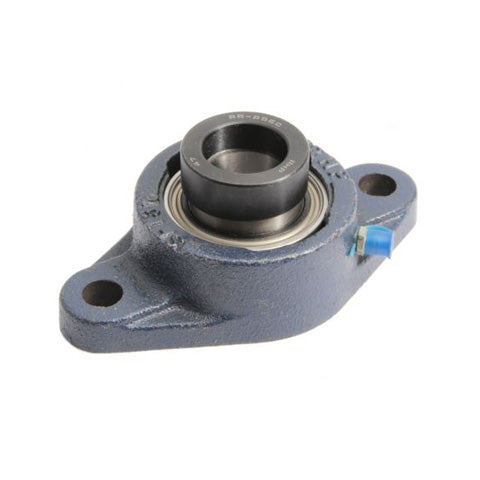

RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
£54.10
ex VAT£64.92inc. VAT
Regular price
Sale price
£54.10
ex VAT£64.92
inc. VAT
In stock
Price Break
10+
£48.15
20+
£45.44
30+
£44.90
40+
£44.36
50+
£43.82
75+
£43.28
100+
£40.57
200+
£40.03
250+
£39.49
500+
£38.95
1000+
£37.87
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm

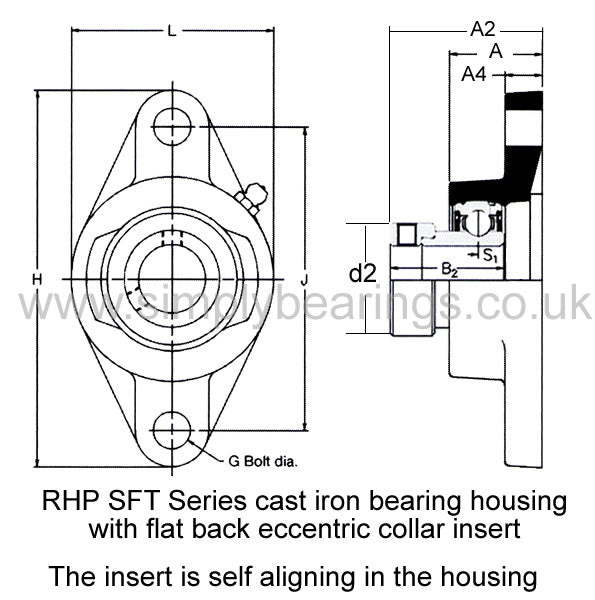

Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A2 | 50.34mm |
| A4 | 12.7mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
