SKU: SFT30A-RHP

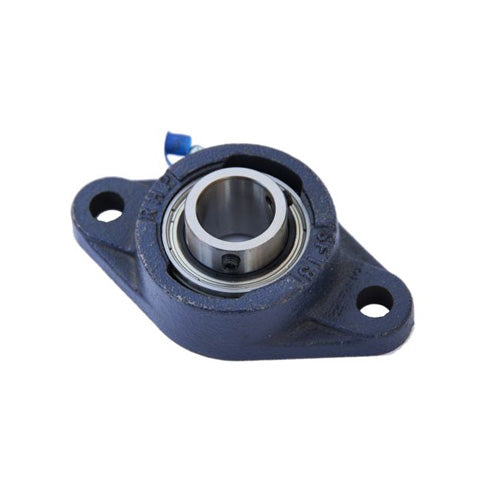

RHP SFT30A Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
RHP SFT30A Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
Regular price
£45.53
ex VAT£54.64inc. VAT
Regular price
Sale price
£45.53
ex VAT£54.64
inc. VAT
In stock
Price Break
10+
£40.52
20+
£38.24
30+
£37.79
40+
£37.33
50+
£36.88
75+
£36.42
100+
£34.15
200+
£33.69
250+
£33.23
500+
£32.78
1000+
£31.87
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SFT
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A1 | 42.21mm |
| A4 | 12.7mm |
| B1 | 31.21mm |
| s1 | 9.04mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
