SKU: SFT2R-RHP

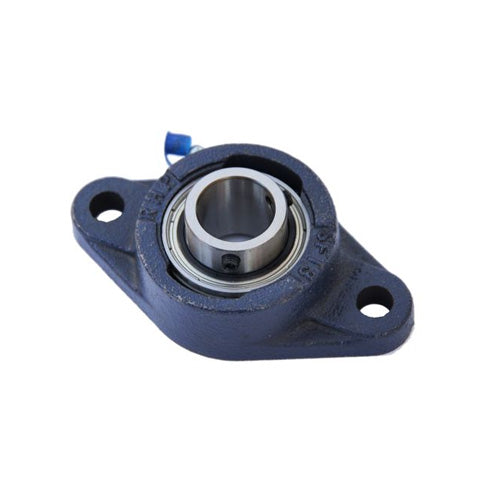

RHP SFT2R Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
RHP SFT2R Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
Regular price
£83.89
ex VAT£100.67inc. VAT
Regular price
Sale price
£83.89
ex VAT£100.67
inc. VAT
In stock
Price Break
10+
£74.66
20+
£70.47
30+
£69.63
40+
£68.79
50+
£67.95
75+
£67.11
100+
£62.92
200+
£62.08
250+
£61.24
500+
£60.40
1000+
£58.72
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SFT
- Bolt Hole Centres:
- 156.997mm = 6.181 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 4.563 inch |
| H | 7.437 inch |
| J | 6.181 inch |
| G | 0.625 inch |
| A | 1.563 inch |
| A1 | 2.283 inch |
| A4 | 0.563 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
