SKU: SFT25-RHP

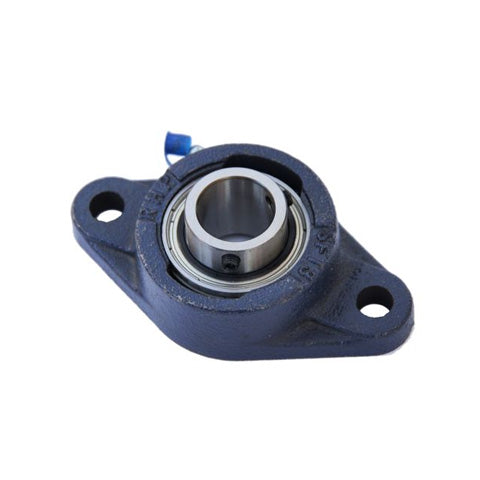

RHP SFT25 Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25 Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
£37.67
ex VAT£45.20inc. VAT
Regular price
Sale price
£37.67
ex VAT£45.20
inc. VAT
In stock
Price Break
10+
£33.52
20+
£31.64
30+
£31.26
40+
£30.89
50+
£30.51
75+
£30.13
100+
£28.25
200+
£27.87
250+
£27.50
500+
£27.12
1000+
£26.37
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A1 | 38.84mm |
| A4 | 11.1mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
