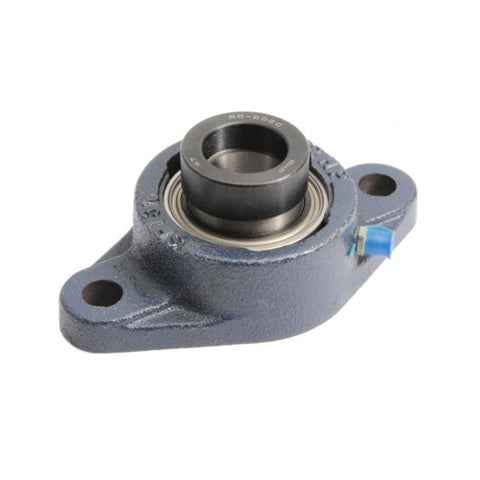

• RHP SFT20EC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
1 1

SKU: SFT20EC-RHP

RHP SFT20EC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert

RHP SFT20EC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
£33.85 ex VAT£40.62inc. VAT
£33.85 ex VAT£40.62 inc. VAT
Sale Sold out

In stock

Price Break
10+ £30.13
19+ £28.43
29+ £28.10
39+ £27.76
49+ £27.42
74+ £27.08
99+ £25.39
199+ £25.05
249+ £24.71
499+ £24.37
999+ £23.70
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
SFT
Bolt Hole Centres:
90mm
Technical
Bore 20mm
L 60.3mm
H 111.9mm
J 90mm
G 10mm
A 27.8mm
A2 42.42mm
A4 11.1mm
B2 30.92mm
s1 7.56mm
d2 33.3mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.6 kg
Insert <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
