SKU: SFT20-RHP

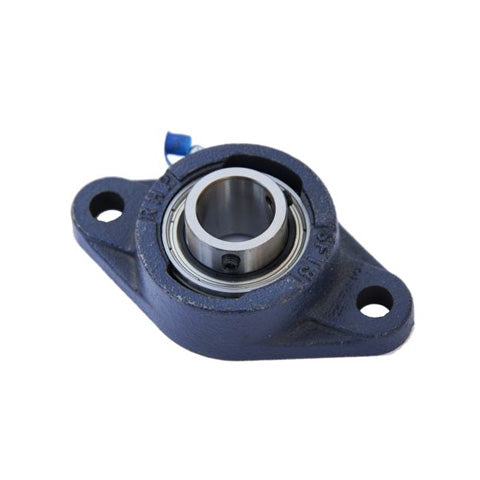

RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
£31.34
ex VAT£37.61inc. VAT
Regular price
Sale price
£31.34
ex VAT£37.61
inc. VAT
In stock
Price Break
10+
£27.89
20+
£26.33
30+
£26.01
40+
£25.70
50+
£25.39
75+
£25.07
100+
£23.51
200+
£23.19
250+
£22.88
500+
£22.57
1000+
£21.94
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SFT
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 60.3mm |
| H | 111.9mm |
| J | 90mm |
| G | 10mm |
| A | 27.8mm |
| A1 | 37.26mm |
| A4 | 11.1mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
