SKU: SFT1EC-RHP

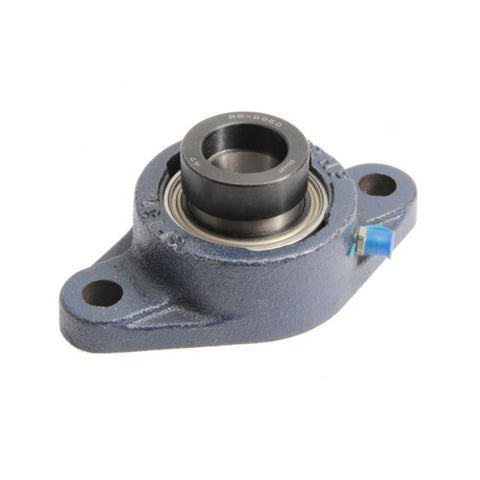

RHP SFT1EC Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP SFT1EC Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
£41.87
ex VAT£50.24inc. VAT
Regular price
Sale price
£41.87
ex VAT£50.24
inc. VAT
In stock
Price Break
10+
£37.27
20+
£35.17
30+
£34.76
40+
£34.34
50+
£33.92
75+
£33.50
100+
£31.41
200+
£30.99
250+
£30.57
500+
£30.15
1000+
£29.31
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SFT
- Bolt Hole Centres:
- 99.01mm = 3.898 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 2.689 inch |
| H | 4.874 inch |
| J | 3.898 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A2 | 1.67 inch |
| A4 | 0.437 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
