SKU: SFT12-RHP

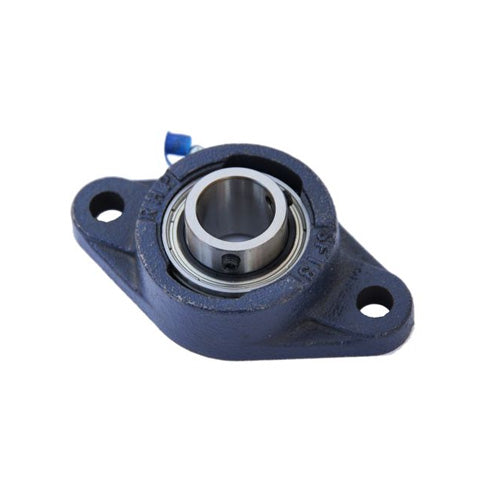

RHP SFT12 Two Bolt Oval Cast Iron Flange Housing 12mm Bore Insert
RHP SFT12 Two Bolt Oval Cast Iron Flange Housing 12mm Bore Insert
Regular price
£21.12
ex VAT£25.34inc. VAT
Regular price
Sale price
£21.12
ex VAT£25.34
inc. VAT
In stock
Price Break
10+
£18.80
19+
£17.74
29+
£17.53
39+
£17.32
49+
£17.11
74+
£16.90
99+
£15.84
199+
£15.63
249+
£15.42
499+
£15.21
999+
£14.78
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 12mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-12G+insonly">1017-12G Click Here</a> |
| Casting group | SFT1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
