SKU: SFT1.3/8-RHP

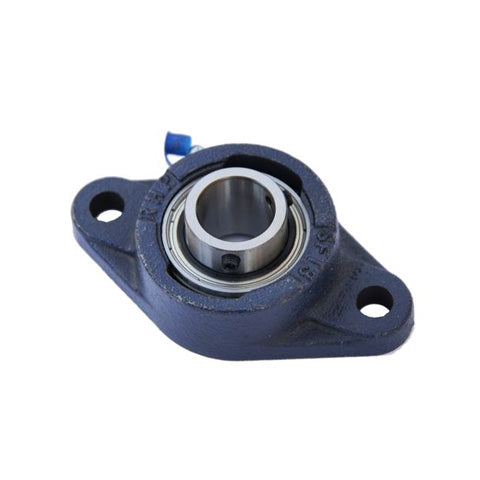

RHP SFT1-3/8 Two Bolt Oval Cast Iron Flange Housing 1-3/8 inch Bore Insert
RHP SFT1-3/8 Two Bolt Oval Cast Iron Flange Housing 1-3/8 inch Bore Insert
Regular price
£56.20
ex VAT£67.44inc. VAT
Regular price
Sale price
£56.20
ex VAT£67.44
inc. VAT
In stock
Price Break
10+
£50.02
19+
£47.21
29+
£46.65
39+
£46.08
49+
£45.52
74+
£44.96
99+
£42.15
199+
£41.59
249+
£41.03
499+
£40.46
999+
£39.34
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SFT
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 3.76 inch |
| H | 6.122 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 1.236 inch |
| A1 | 1.827 inch |
| A4 | 0.5 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
