SKU: SF3-RHP

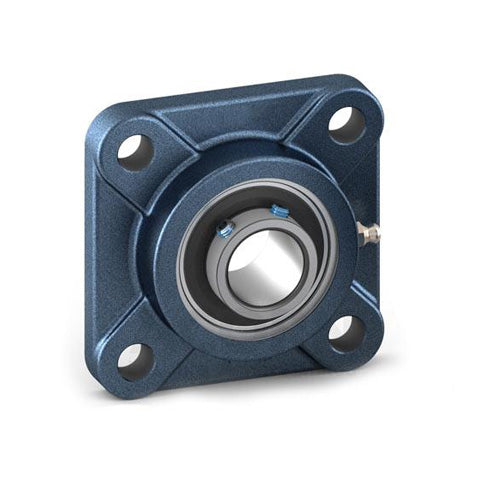

RHP SF3 Four Bolt Square Cast Iron Flange Housing and 3 inch Bore Grub Screw Full Width Insert
RHP SF3 Four Bolt Square Cast Iron Flange Housing and 3 inch Bore Grub Screw Full Width Insert
Regular price
£288.14
ex VAT£345.77inc. VAT
Regular price
Sale price
£288.14
ex VAT£345.77
inc. VAT
In stock
Price Break
10+
£256.44
19+
£242.04
29+
£239.16
39+
£236.27
49+
£233.39
74+
£230.51
99+
£216.11
199+
£213.22
249+
£210.34
499+
£207.46
999+
£201.70
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- SF
- Bolt Hole Centres:
- 152.4mm = 6 inch
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 7.736 inch |
| H | 6.24 inch |
| J | 6 inch |
| G | 0.75 inch |
| A | 2.02 |
| A1 | 3.185 inch |
| A4 | 0.906 inch |
| B | 3.062 |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static Load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-3G+insonly">1075-3G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
