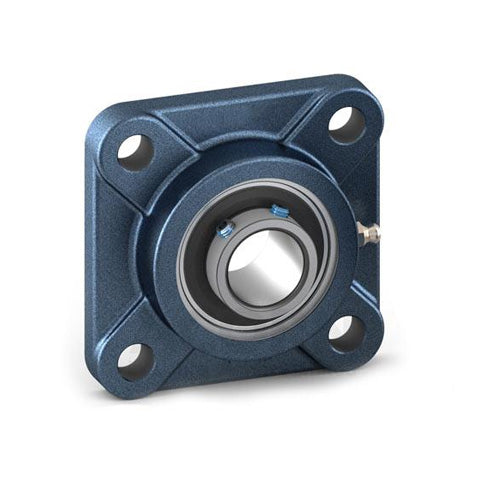

• RHP SF2-3/16 Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Grub Screw Full Width Insert
1 1

SKU: SF2.3/16-RHP

RHP SF2-3/16 Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Grub Screw Full Width Insert

RHP SF2-3/16 Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Grub Screw Full Width Insert
£109.69 ex VAT£131.63inc. VAT
£109.69 ex VAT£131.63 inc. VAT
Sale Sold out

In stock

Price Break
10+ £97.62
20+ £92.14
30+ £91.04
40+ £89.94
50+ £88.85
75+ £87.75
100+ £82.27
200+ £81.17
250+ £80.07
500+ £78.97
1000+ £76.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, full width insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Style:
SF
Bolt Hole Centres:
129.997mm = 5.118 inch
Technical
Bore 2-3/16 inch
L 6.374 inch
H 5000 inch
J 5.118 inch
G 0.625 inch
A 1.72
A1 2.532 inch
A4 0.689 inch
B 2.187
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static Load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-3/16G+insonly">1055-2-3/16G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
