SKU: SF2.1/4-RHP

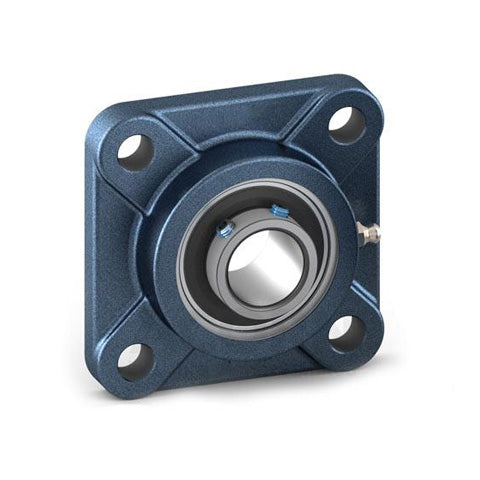

RHP SF2-1/4 Four Bolt Square Cast Iron Flange Housing and 2-1/4 inch Bore Grub Screw Full Width Insert
RHP SF2-1/4 Four Bolt Square Cast Iron Flange Housing and 2-1/4 inch Bore Grub Screw Full Width Insert
Regular price
£133.51
ex VAT£160.21inc. VAT
Regular price
Sale price
£133.51
ex VAT£160.21
inc. VAT
In stock
Price Break
10+
£118.82
19+
£112.15
29+
£110.81
39+
£109.48
49+
£108.14
74+
£106.81
99+
£100.13
199+
£98.80
249+
£97.46
499+
£96.13
999+
£93.46
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 143.002mm = 5.63 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 6.87 inch |
| H | 5.437 inch |
| J | 5.63 inch |
| G | 0.625 inch |
| A | 1.874 |
| A1 | 2.901 inch |
| A4 | 0.689 inch |
| B | 2.562 |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static Load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
