SKU: SF2.1/2DEC-RHP

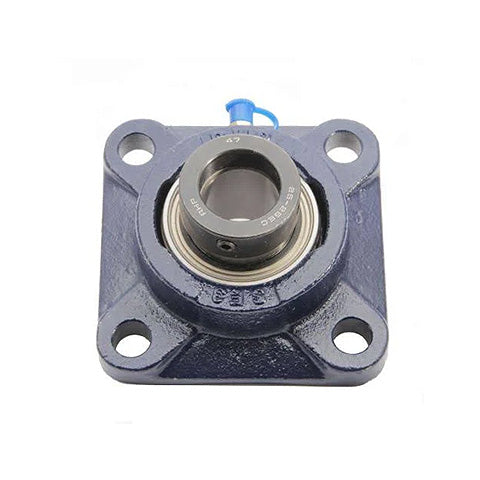

RHP SF2-1/2DEC Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Eccentric Collar Full Width Insert

RHP SF2-1/2DEC Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Eccentric Collar Full Width Insert
Regular price £253.44 ex VAT£304.13inc. VAT
Regular price Sale price £253.44 ex VAT£304.13 inc. VAT
Sale Sold out

In stock

Price Break
10+ £225.56
20+ £212.89
30+ £210.36
40+ £207.82
50+ £205.29
75+ £202.75
100+ £190.08
200+ £187.55
250+ £185.01
500+ £182.48
1000+ £177.41
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/2 inch
L 6.87 inch
H 5.886 inch
J 5.63 inch
G 0.625 inch
A 1.874 inch
A3 3.18 inch
A4 0.709 inch
B3 3.064 inch
s2 1.221 inch
d2 3.438 inch
Dynamic load Cr 57500 N
Static Load Cor 40000 N
Rec max speed 2600 rpm
Weight 4.7 kg
Insert <a href="advanced_search_result.php?keywords=1066-2-1/2DECG+insonly">1066-2-1/2DECG Click Here</a>
Casting group 24017
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
