SKU: SF2.1/2-RHP

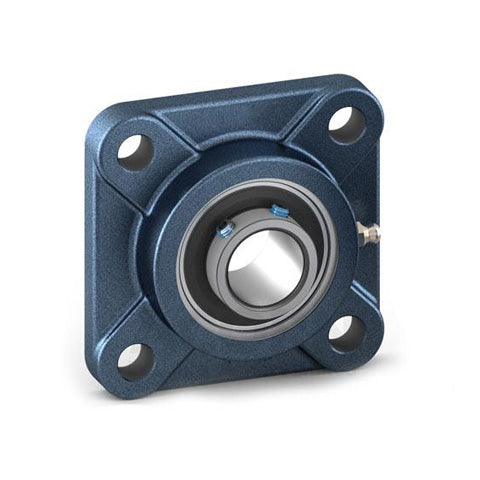

RHP SF2-1/2 Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Grub Screw Full Width Insert
RHP SF2-1/2 Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Grub Screw Full Width Insert
Regular price
£224.55
ex VAT£269.46inc. VAT
Regular price
Sale price
£224.55
ex VAT£269.46
inc. VAT
In stock
Price Break
10+
£199.85
20+
£188.62
30+
£186.37
40+
£184.13
50+
£181.88
75+
£179.64
100+
£168.41
200+
£166.16
250+
£163.92
500+
£161.67
1000+
£157.18
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- SF
- Bolt Hole Centres:
- 143.002mm = 5.63 inch
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| L | 6.87 inch |
| H | 5.886 inch |
| J | 5.63 inch |
| G | 0.625 inch |
| A | 1.874 |
| A1 | 2.901 inch |
| A4 | 0.709 inch |
| B | 2.562 |
| s | 1.002 inch |
| d1 | 3.244 inch |
| Dynamic load Cr | 57500 N |
| Static Load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a> |
| Casting group | 24016 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
