SKU: SF1EC-RHP

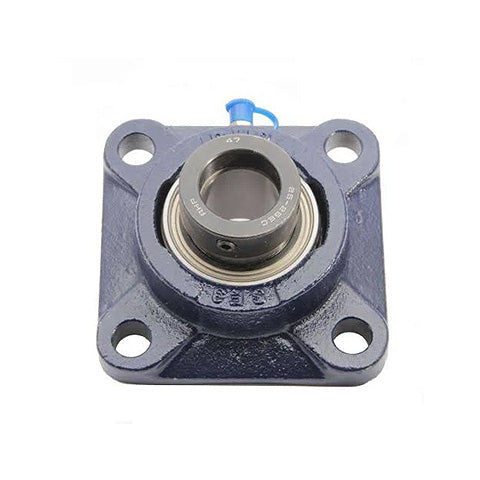

RHP SF1EC Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Eccentric Collar Flat Back Insert
RHP SF1EC Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Eccentric Collar Flat Back Insert
Regular price
£41.87
ex VAT£50.24inc. VAT
Regular price
Sale price
£41.87
ex VAT£50.24
inc. VAT
In stock
Price Break
10+
£37.26
19+
£35.17
29+
£34.75
39+
£34.33
49+
£33.91
74+
£33.50
99+
£31.40
199+
£30.98
249+
£30.57
499+
£30.15
999+
£29.31
Couldn't load pickup availability
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SF
- Bolt Hole Centres:
- 70.002mm = 2.756 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.752 inch |
| H | 2.677 inch |
| J | 2.756 inch |
| G | 0.4375 inch |
| A | 1.126 |
| A2 | 1.67 inch |
| A4 | 0.437 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static Load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
