SKU: SF1-RHP

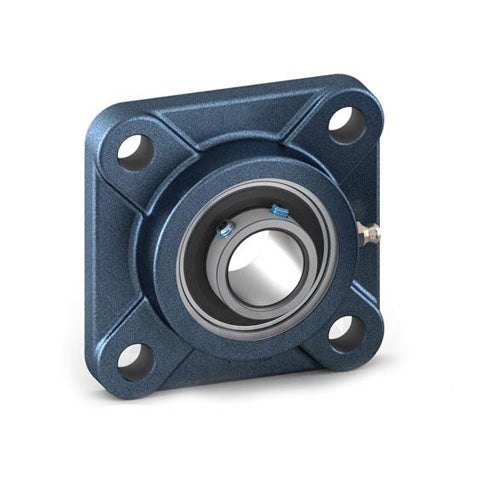

RHP SF1 Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Full Width Insert

RHP SF1 Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Full Width Insert
Regular price £40.76 ex VAT£48.91inc. VAT
Regular price Sale price £40.76 ex VAT£48.91 inc. VAT
Sale Sold out

In stock

Price Break
10+ £36.27
20+ £34.24
30+ £33.83
40+ £33.42
50+ £33.01
75+ £32.61
100+ £30.57
200+ £30.16
250+ £29.75
500+ £29.34
1000+ £28.53
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1 inch
L 3.752 inch
H 2.677 inch
J 2.756 inch
G 0.4375 inch
A 1.126
A1 1.529 inch
A4 0.437 inch
B 1.343
s 0.564 inch
d1 1.339 inch
Dynamic load Cr 14000 N
Static Load Cor 7880 N
Rec max speed 6250 rpm
Weight 1 kg
Insert <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
