SKU: SER.212-39

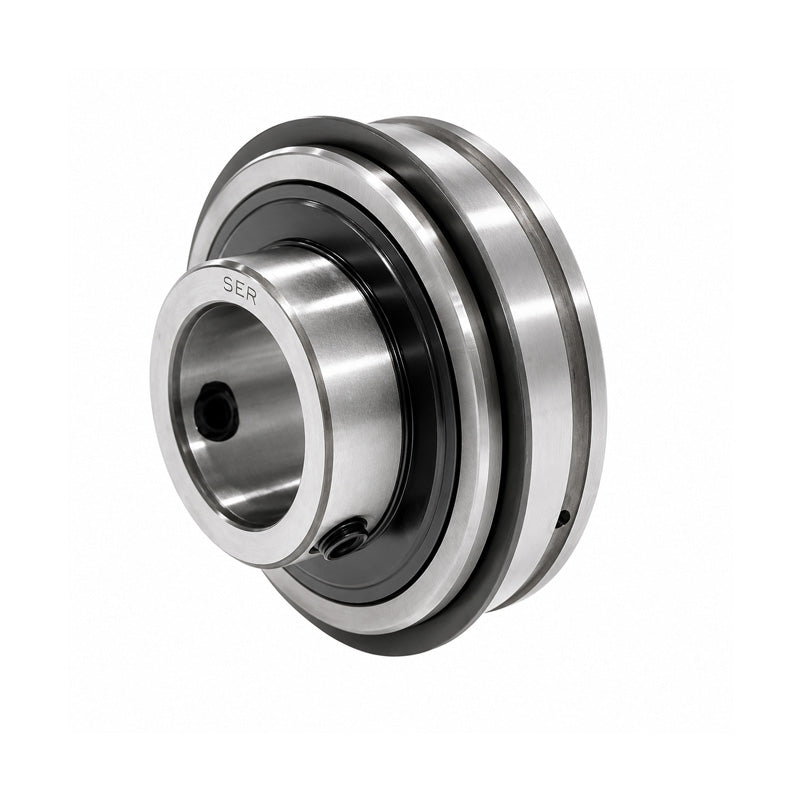

SER212-39 Imperial Bearing Insert and Snap Ring 2-7/16 inch Bore 110mm Outside Dia
SER212-39 Imperial Bearing Insert and Snap Ring 2-7/16 inch Bore 110mm Outside Dia
Regular price
£27.41
ex VAT£32.89inc. VAT
Regular price
Sale price
£27.41
ex VAT£32.89
inc. VAT
In stock
Price Break
3+
£24.39
4+
£23.02
9+
£22.75
19+
£22.48
49+
£22.20
99+
£21.93
499+
£20.56
999+
£20.28
1999+
£20.01
2999+
£19.74
4999+
£19.19
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm
- Style:
- SER
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 31.8mm |
| n | 25.4mm |
| m | 39.7mm |
| E | 25.82mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 9.92mm |
| J | 3.28mm |
| P | 116.6mm |
| G | 11.1mm |
| Grub screw | 3/8"-24UNF |
| Weight | 1.71 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
