SKU: SER.212

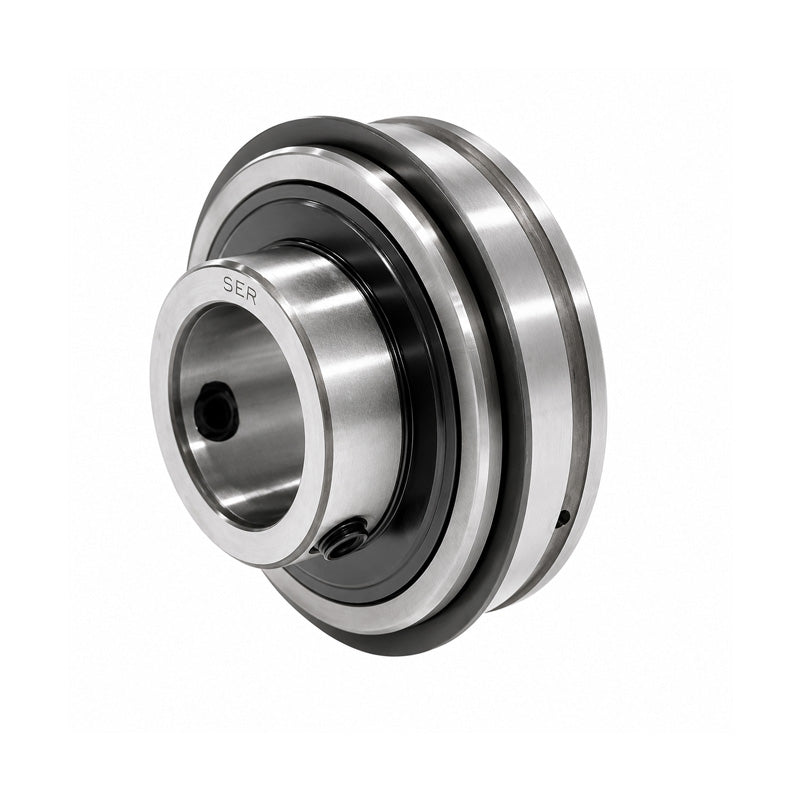

SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
Regular price
£42.82
ex VAT£51.38inc. VAT
Regular price
Sale price
£42.82
ex VAT£51.38
inc. VAT
In stock
Price Break
10+
£38.11
19+
£35.97
29+
£35.54
39+
£35.11
49+
£34.68
74+
£34.26
99+
£32.12
199+
£31.69
249+
£31.26
499+
£30.83
999+
£29.97
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- SER
- Type:
- Parallel Outer
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 31.8mm |
| n | 25.4mm |
| m | 39.7mm |
| E | 25.82mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 9.92mm |
| J | 3.28mm |
| P | 116.6mm |
| G | 11.1mm |
| Grub screw | M10x1.0 |
| Weight | 1.71 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
