SKU: SER.210-31

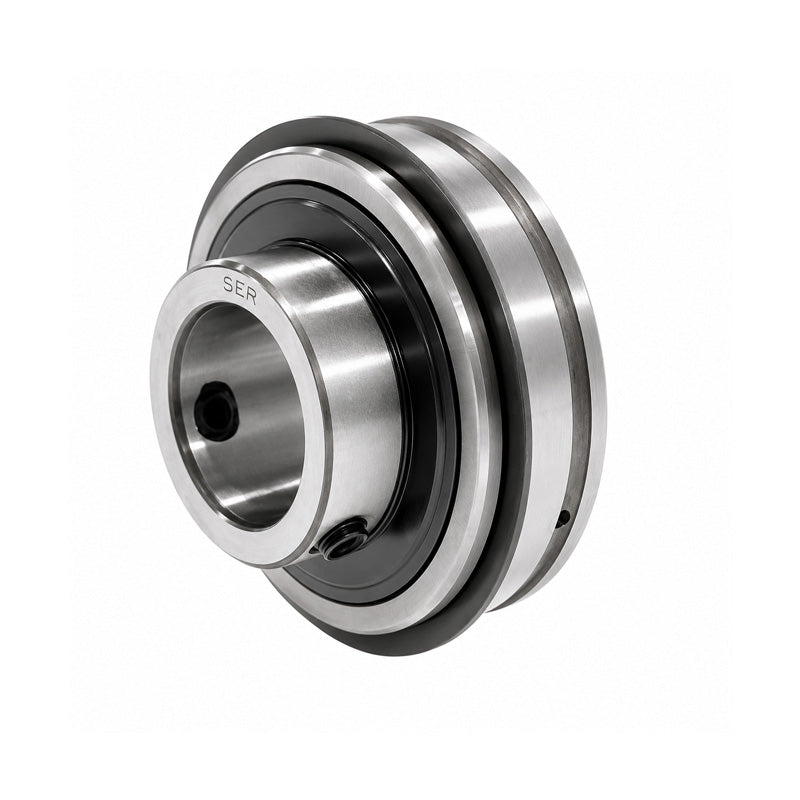

SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia
SER210-31 Imperial Bearing Insert and Snap Ring 1-15/16 inch Bore 90mm Outside Dia
Regular price
£47.13
ex VAT£56.56inc. VAT
Regular price
Sale price
£47.13
ex VAT£56.56
inc. VAT
In stock
Price Break
3+
£41.95
4+
£39.59
9+
£39.12
19+
£38.65
49+
£38.18
99+
£37.71
499+
£35.35
999+
£34.88
1999+
£34.41
2999+
£33.94
4999+
£32.99
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 90mm
- Style:
- SER
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 28.6mm |
| n | 19mm |
| m | 32.6mm |
| E | 22.62mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 8.32mm |
| J | 3.28mm |
| P | 96.5mm |
| G | 9.5mm |
| Grub screw | 3/8"-24UNF |
| Weight | 0.93 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
