SKU: SER.208
SER208 Metric Bearing Insert and Snap Ring 40mm Bore 80mm Outside Dia
SER208 Metric Bearing Insert and Snap Ring 40mm Bore 80mm Outside Dia
Regular price
£20.19
ex VAT£24.23inc. VAT
Regular price
Sale price
£20.19
ex VAT£24.23
inc. VAT
In stock
Price Break
3+
£17.97
4+
£16.96
9+
£16.75
19+
£16.55
49+
£16.35
99+
£16.15
499+
£15.14
999+
£14.94
1999+
£14.74
2999+
£14.53
4999+
£14.13
Description
Description
|

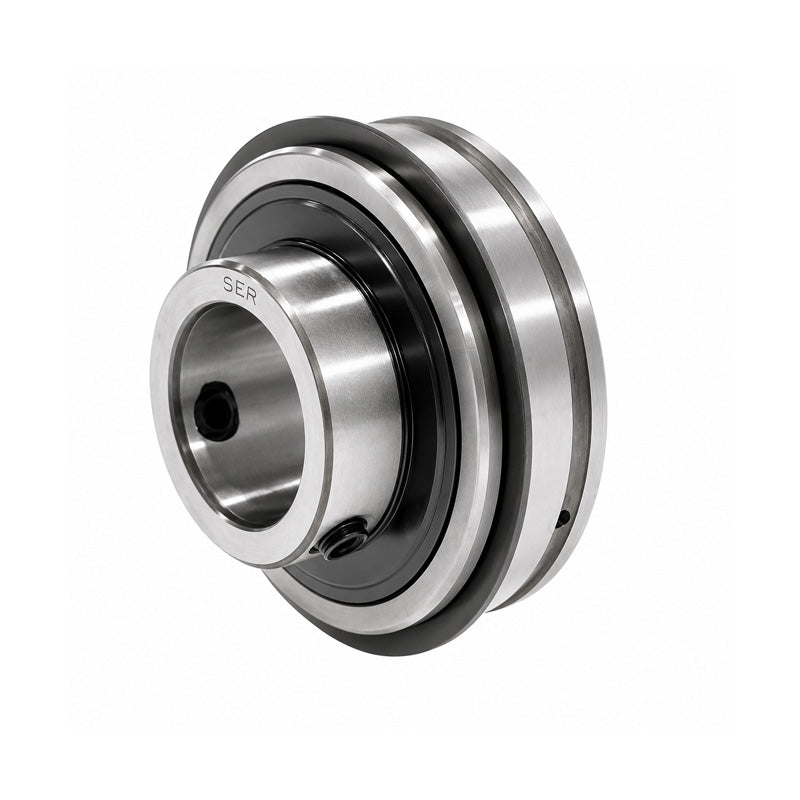

SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- SER
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 27.8mm |
| n | 19mm |
| m | 30.2mm |
| E | 22.62mm |
| a | 1.65mm |
| h | 6.4mm |
| R | 8.72mm |
| J | 3.28mm |
| P | 86.6mm |
| G | 8mm |
| Grub screw | M8x1.0 |
| Weight | 0.72 kg |
| Dynamic load | 2208 kgf |
| Static load | 1590 kgf |
| Rec max speed | 4000 rpm |
