SKU: SER.207-23

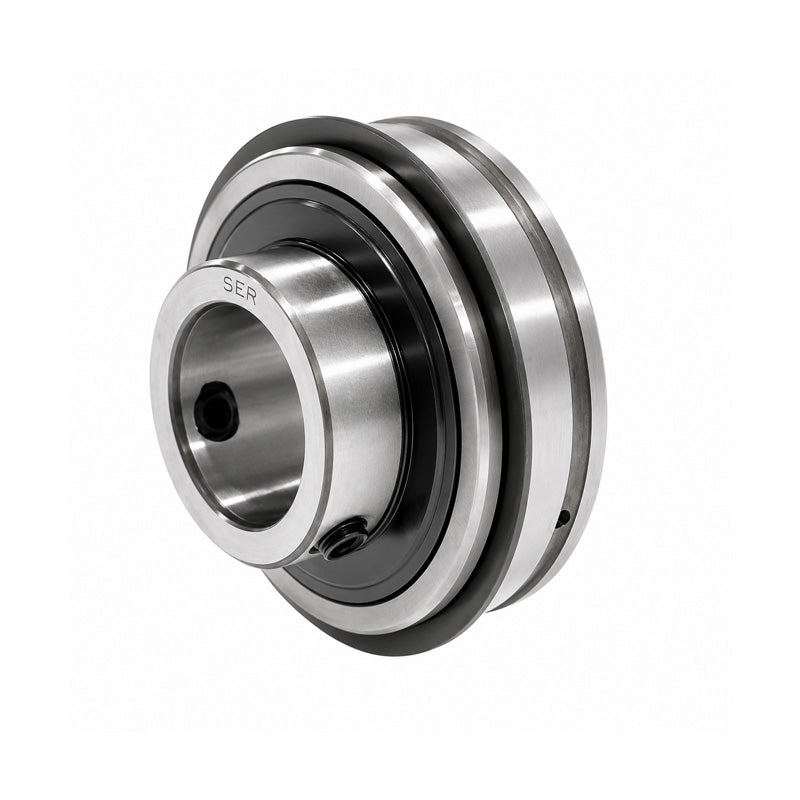

SER207-23 Imperial Bearing Insert and Snap Ring 1-7/16 inch Bore 72mm Outside Dia
SER207-23 Imperial Bearing Insert and Snap Ring 1-7/16 inch Bore 72mm Outside Dia
Regular price
£18.93
ex VAT£22.72inc. VAT
Regular price
Sale price
£18.93
ex VAT£22.72
inc. VAT
In stock
Price Break
3+
£16.85
4+
£15.90
9+
£15.71
19+
£15.52
49+
£15.33
99+
£15.14
499+
£14.20
999+
£14.01
1999+
£13.82
2999+
£13.63
4999+
£13.25
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Style:
- SER
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 23.8mm |
| n | 17.5mm |
| m | 25.4mm |
| E | 18.62mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 6.72mm |
| J | 3.28mm |
| P | 78.6mm |
| G | 6.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.56 kg |
| Dynamic load | 2020 kgf |
| Static load | 1390 kgf |
