SKU: SER.207

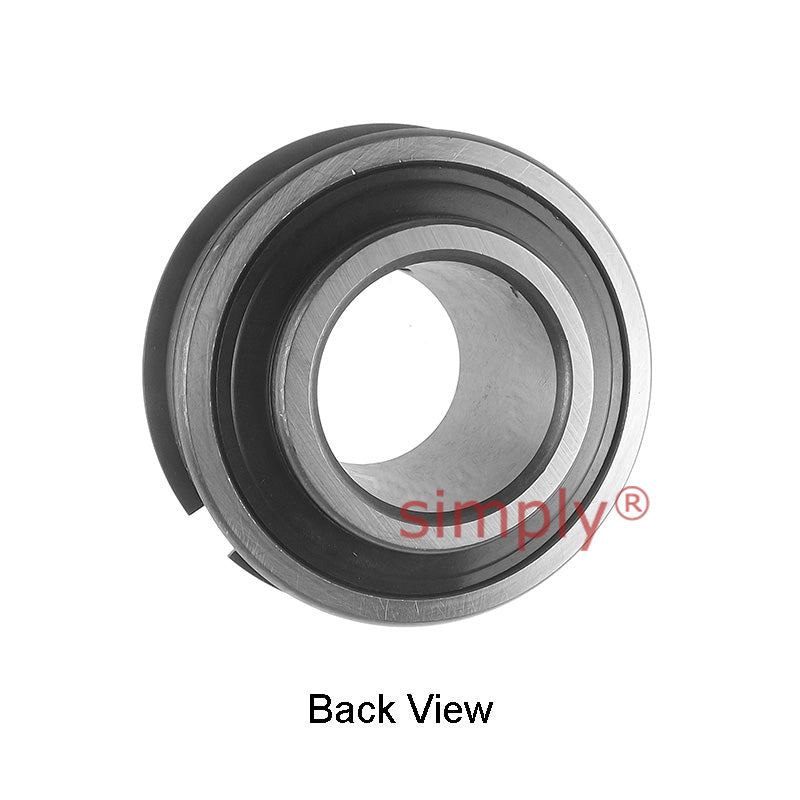

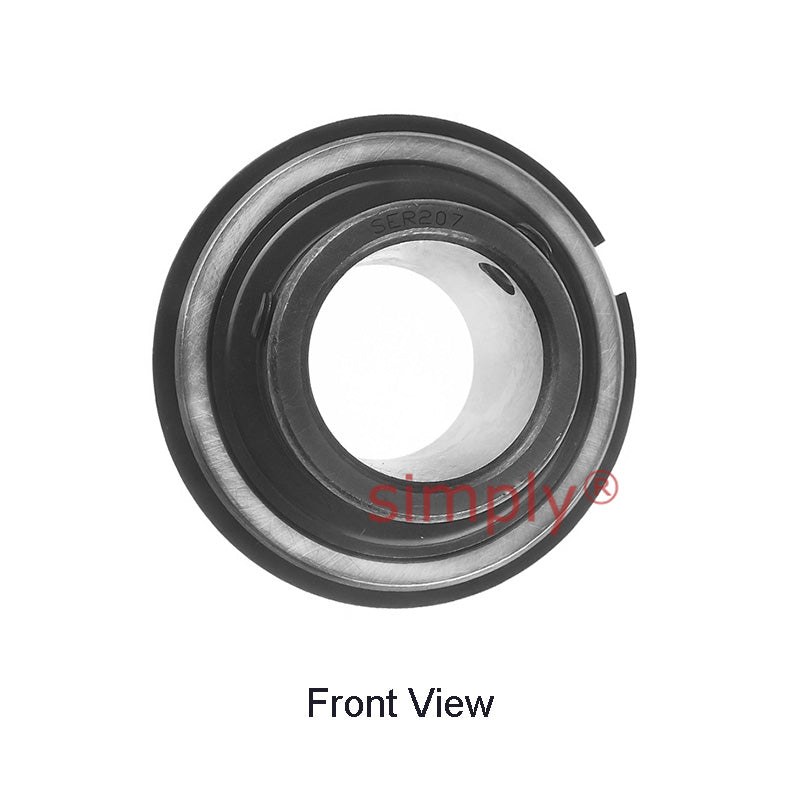

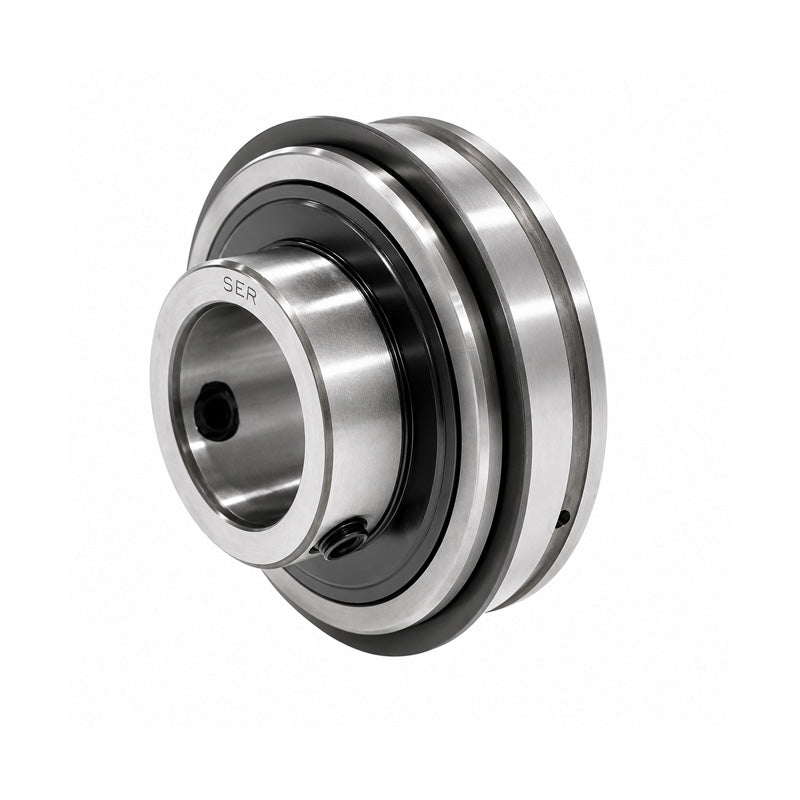

SER207 Metric Bearing Insert and Snap Ring 35mm Bore 72mm Outside Dia
SER207 Metric Bearing Insert and Snap Ring 35mm Bore 72mm Outside Dia
Regular price
£17.29
ex VAT£20.75inc. VAT
Regular price
Sale price
£17.29
ex VAT£20.75
inc. VAT
In stock
Price Break
3+
£15.39
4+
£14.52
9+
£14.35
19+
£14.18
49+
£14.00
99+
£13.83
499+
£12.97
999+
£12.79
1999+
£12.62
2999+
£12.45
4999+
£12.10
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- SER
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 23.8mm |
| n | 17.5mm |
| m | 25.4mm |
| E | 18.62mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 6.72mm |
| J | 3.28mm |
| P | 78.6mm |
| G | 6.5mm |
| Grub screw | M8x1.0 |
| Weight | 0.56 kg |
| Dynamic load | 2020 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
