SKU: SER.206-20

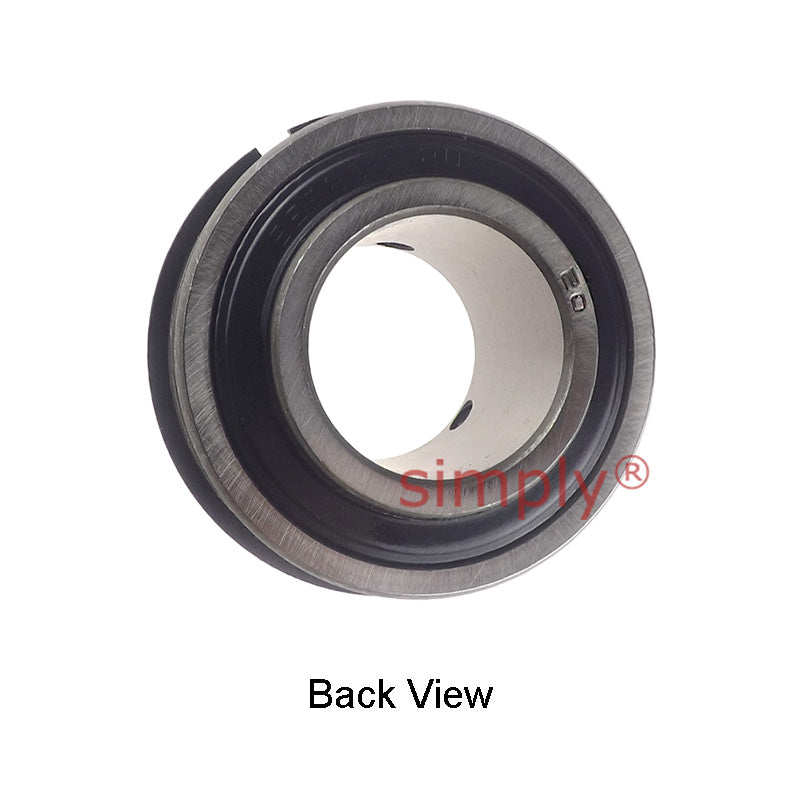

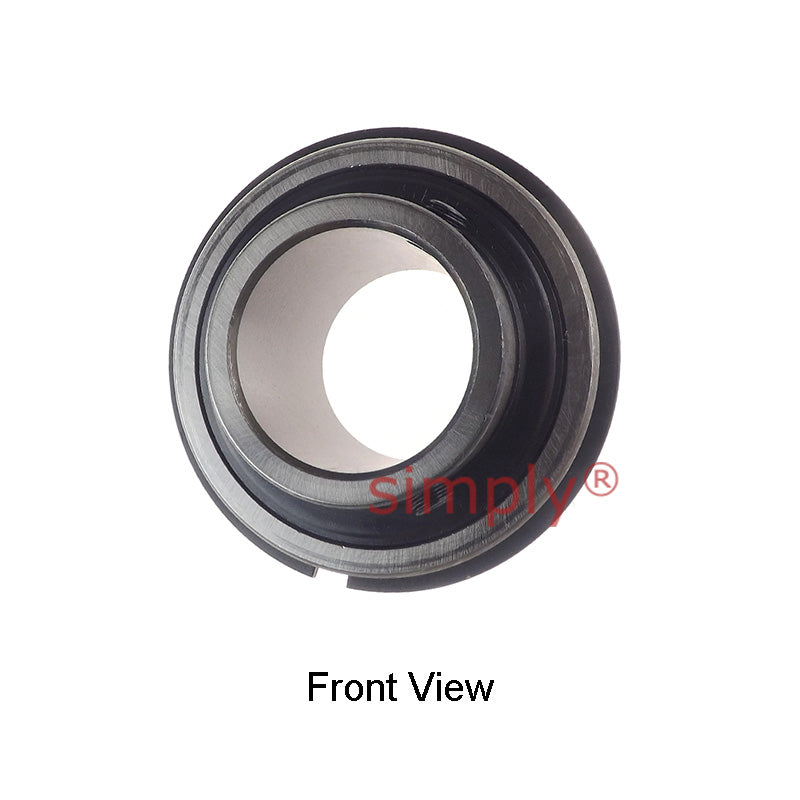

SER206-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 62mm Outside Dia
SER206-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 62mm Outside Dia
Regular price
£8.14
ex VAT£9.77inc. VAT
Regular price
Sale price
£8.14
ex VAT£9.77
inc. VAT
In stock
Price Break
3+
£7.24
4+
£6.84
9+
£6.76
19+
£6.67
49+
£6.59
99+
£6.51
499+
£6.11
999+
£6.02
1999+
£5.94
2999+
£5.86
4999+
£5.70
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- SER

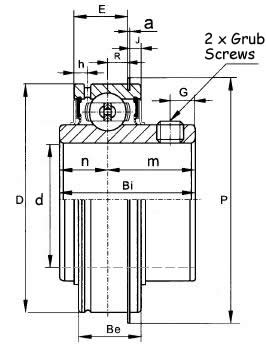

Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 22.2mm |
| n | 15.9mm |
| m | 22.2mm |
| E | 17.02mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 5.92mm |
| J | 3.28mm |
| P | 67.7mm |
| G | 5.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.39 kg |
| Dynamic load | 1530 kgf |
| Static load | 1020 kgf |
