SKU: SE507-606-SKF

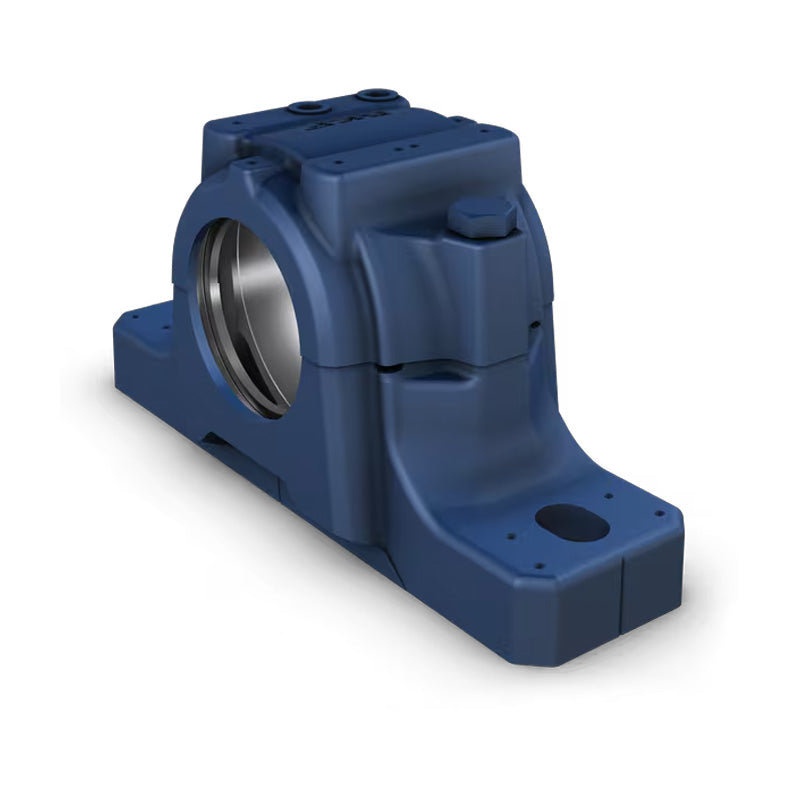

SKF SE507-606 Cast Iron Split Pillow Block Housing
SKF SE507-606 Cast Iron Split Pillow Block Housing
Regular price
£80.49
ex VAT£96.59inc. VAT
Regular price
Sale price
£80.49
ex VAT£96.59
inc. VAT
Equivalent to: SNL507-606
In stock
Price Break
10+
£71.64
19+
£67.61
29+
£66.81
39+
£66.00
49+
£65.20
74+
£64.39
99+
£60.37
199+
£59.56
249+
£58.76
499+
£57.95
999+
£56.34
Couldn't load pickup availability
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL507-606
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 150.81mm = 5.937 (5-15/16) inch
Technical
Technical
| da | 25mm |
|---|---|
| A | 3-1/4 inch = 82mm |
| A1 | 2-1/16 inch = 52mm |
| A2 | 3-3/4 inch = 94mm |
| A3 | 5-1/2 inch = 140mm |
| H | 3-5/8 inch = 93mm |
| H1 | 1.969 inch = 50mm |
| H2 | 7/8 inch = 22mm |
| J max | 6-1/8 inch = 157mm |
| J min | 5-11/16 inch = 143mm |
| J | 5-15/16 inch = 150mm |
| L | 7-5/16 inch = 185mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 2.59 kg |
