SKU: SE212V-SKF

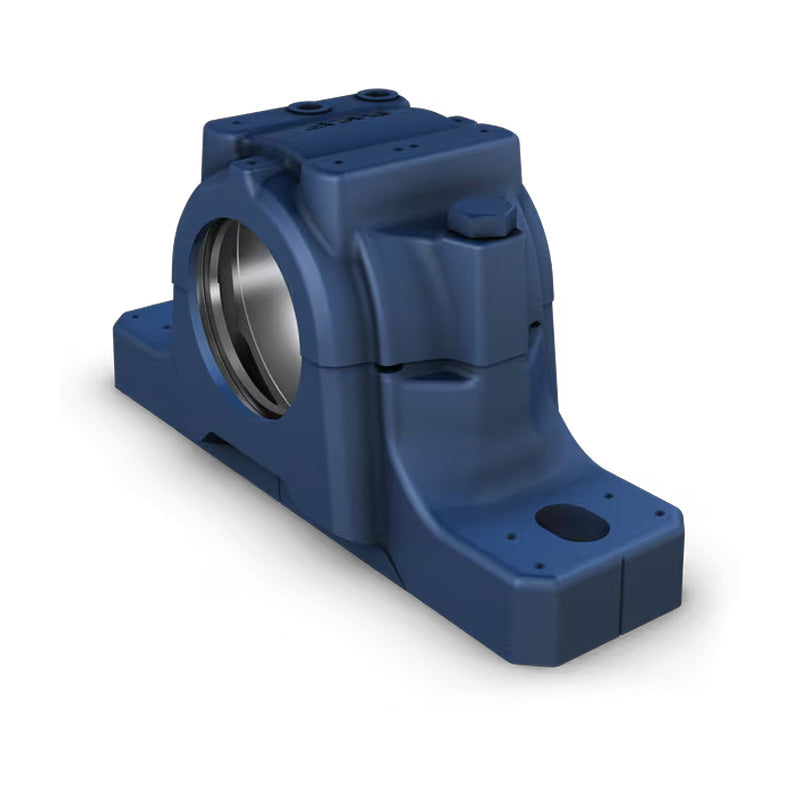

SKF SE212V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
SKF SE212V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
Regular price
£215.23
ex VAT£258.28inc. VAT
Regular price
Sale price
£215.23
ex VAT£258.28
inc. VAT
Equivalent to: SNL212V
In stock
Price Break
4+
£191.55
9+
£180.79
19+
£178.64
29+
£176.49
39+
£174.33
49+
£172.18
59+
£161.42
69+
£159.27
79+
£157.12
89+
£154.96
99+
£150.66
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
Equivalent: SNL212V
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 210mm
Technical
Technical
| da | 60mm |
|---|---|
| db | 70mm |
| A | 4-1/2 inch = 105mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 4-5/8 inch = 117mm |
| A3 | 7-1/8 inch = 180mm |
| H | 5-1/4 inch = 134mm |
| H1 | 2.756 inch = 70mm |
| H2 | 1-3/16 inch = 30mm |
| J Max | 8-7/16 inch = 215mm |
| J Min | 8-1/8 inch = 205mm |
| J | 8-5/16 inch = 210mm |
| L | 10-1/16 inch = 255mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 5.79 kg |
