SKU: SBLF.207-20

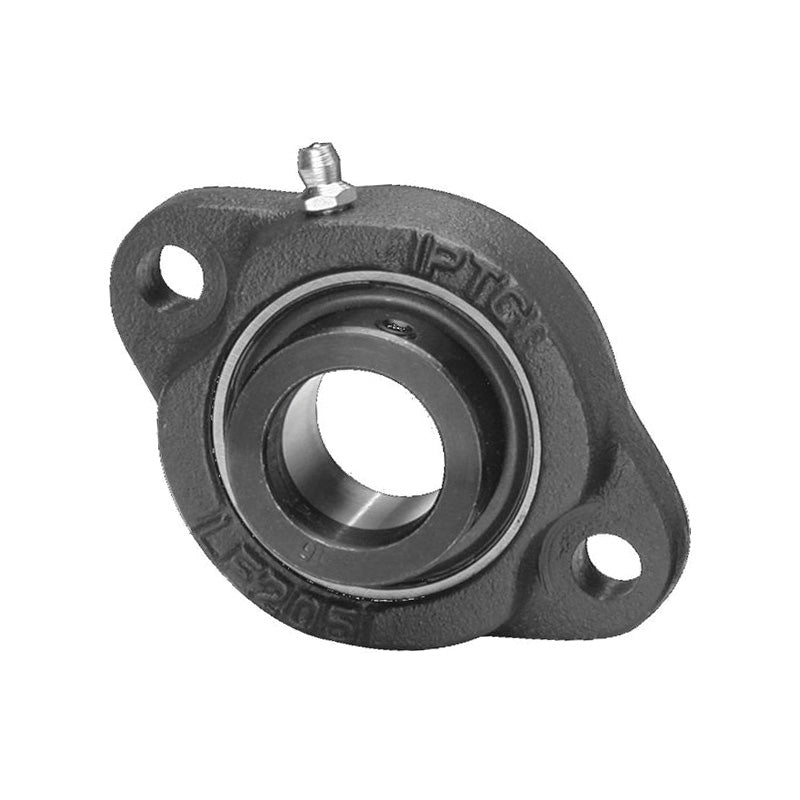

SBLF207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
SBLF207-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
Regular price
£16.58
ex VAT£19.90inc. VAT
Regular price
Sale price
£16.58
ex VAT£19.90
inc. VAT
In stock
Price Break
3+
£14.76
4+
£13.93
9+
£13.76
19+
£13.60
49+
£13.43
99+
£13.27
499+
£12.44
999+
£12.27
1999+
£12.11
2999+
£11.94
4999+
£11.61
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 122mm |
| e | 100mm |
| b | 89mm |
| i | 13mm |
| s | 12mm |
| g | 13mm |
| l | 24mm |
| Bolt | M10 |
| z | 36.5mm |
| n | 8.5mm |
| Weight | 0.9 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
