SKU: SBFW206

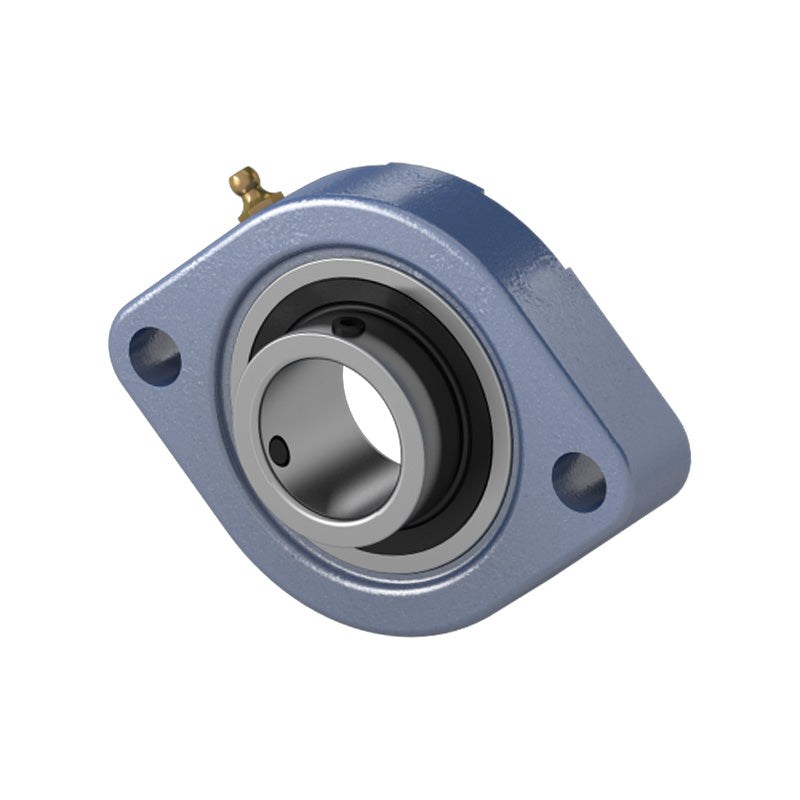

SBFW206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
SBFW206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore
Regular price
£14.08
ex VAT£16.90inc. VAT
Regular price
Sale price
£14.08
ex VAT£16.90
inc. VAT
In stock
Price Break
3+
£12.53
4+
£11.82
9+
£11.68
19+
£11.54
49+
£11.40
99+
£11.26
499+
£10.56
999+
£10.42
1999+
£10.28
2999+
£10.13
4999+
£9.85
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- SBFW
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 112.5mm |
| e | 90.5mm |
| b | 84mm |
| i | 11.5mm |
| s | 11.5mm |
| l | 20.5mm |
| Bolt | M10 |
| z | 33.5mm |
| B | 30mm |
| n | 8mm |
| Weight | 0.8 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
