SKU: SBFW205-15

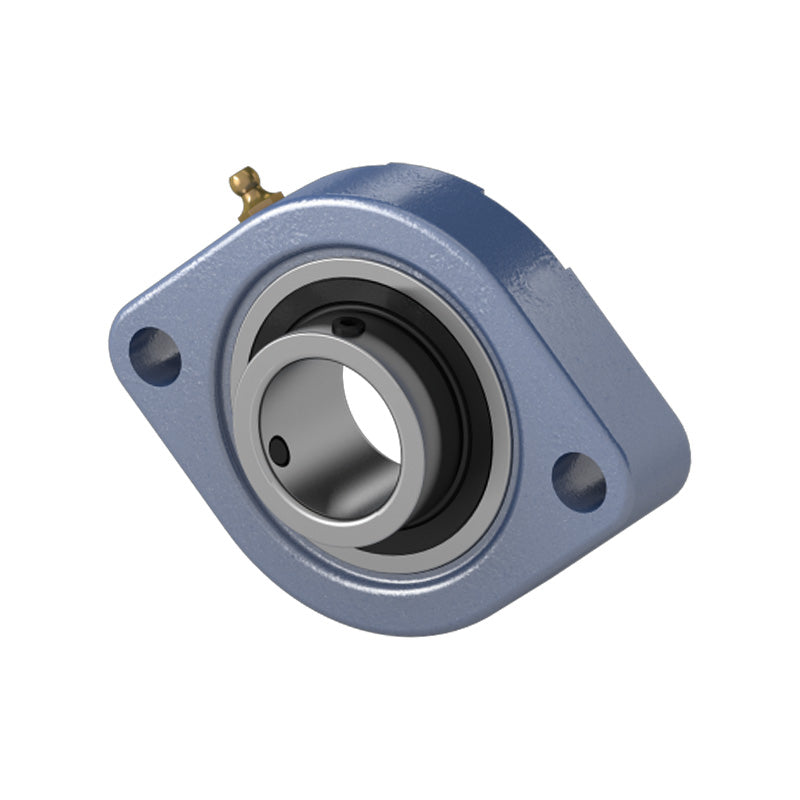

SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
SBFW205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore
Regular price
£13.91
ex VAT£16.69inc. VAT
Regular price
Sale price
£13.91
ex VAT£16.69
inc. VAT
In stock
Price Break
3+
£12.38
4+
£11.68
9+
£11.54
19+
£11.41
49+
£11.27
99+
£11.13
499+
£10.43
999+
£10.29
1999+
£10.15
2999+
£10.01
4999+
£9.74
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 29mm |
| B | 27mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
