SKU: SBFW205-13

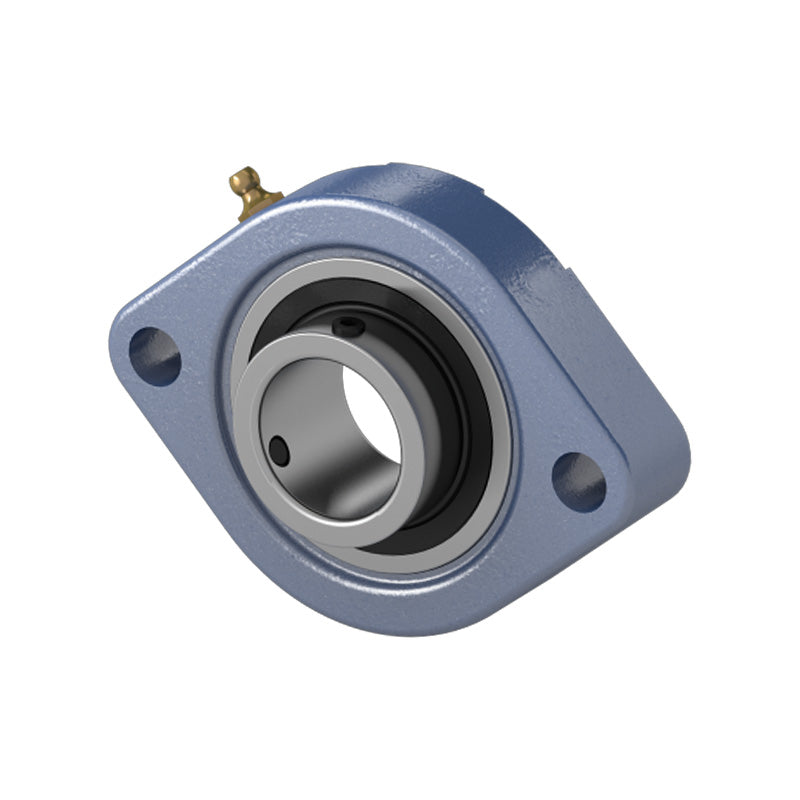

SBFW205-13 Imperial Two Bolt Cast Iron Oval Housing with 13/16 inch Bore - Allow 2-3 Days
SBFW205-13 Imperial Two Bolt Cast Iron Oval Housing with 13/16 inch Bore - Allow 2-3 Days
Regular price
£8.84
ex VAT£10.61inc. VAT
Regular price
Sale price
£8.84
ex VAT£10.61
inc. VAT
In stock
Price Break
3+
£8.75
4+
£8.40
9+
£8.22
19+
£7.96
49+
£7.78
99+
£7.34
499+
£6.19
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 13/16 inch |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 29mm |
| B | 27mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
