SKU: SBFW201
SBFW201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore
SBFW201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore
Regular price
£11.93
ex VAT£14.32inc. VAT
Regular price
Sale price
£11.93
ex VAT£14.32
inc. VAT
In stock
Price Break
10+
£10.62
19+
£10.02
29+
£9.90
39+
£9.78
49+
£9.66
74+
£9.54
99+
£8.95
199+
£8.83
249+
£8.71
499+
£8.59
999+
£8.35
Couldn't load pickup availability
Description
Description
|

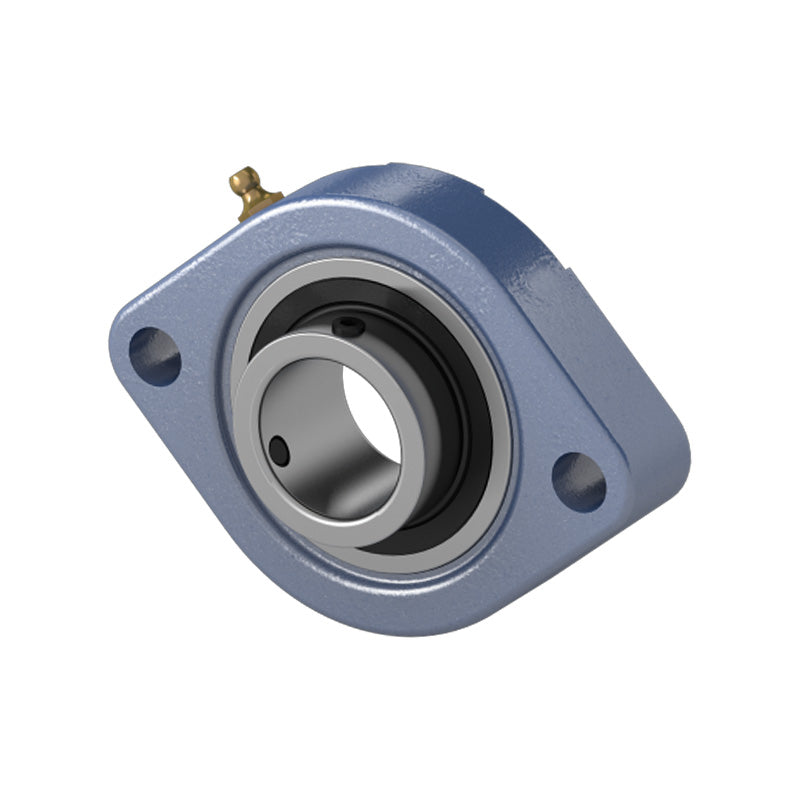

SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SBFW
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 12mm |
|---|---|
| a | 81mm |
| e | 63.5mm |
| b | 58.7mm |
| i | 8.5mm |
| s | 7mm |
| l | 15mm |
| Bolt | M6 |
| z | 24.5mm |
| B | 22mm |
| n | 6mm |
| Weight | 0.3 kg |
| Dynamic load | 750 kgf |
| Static load | 450 kgf |
