SKU: SBFD207-22

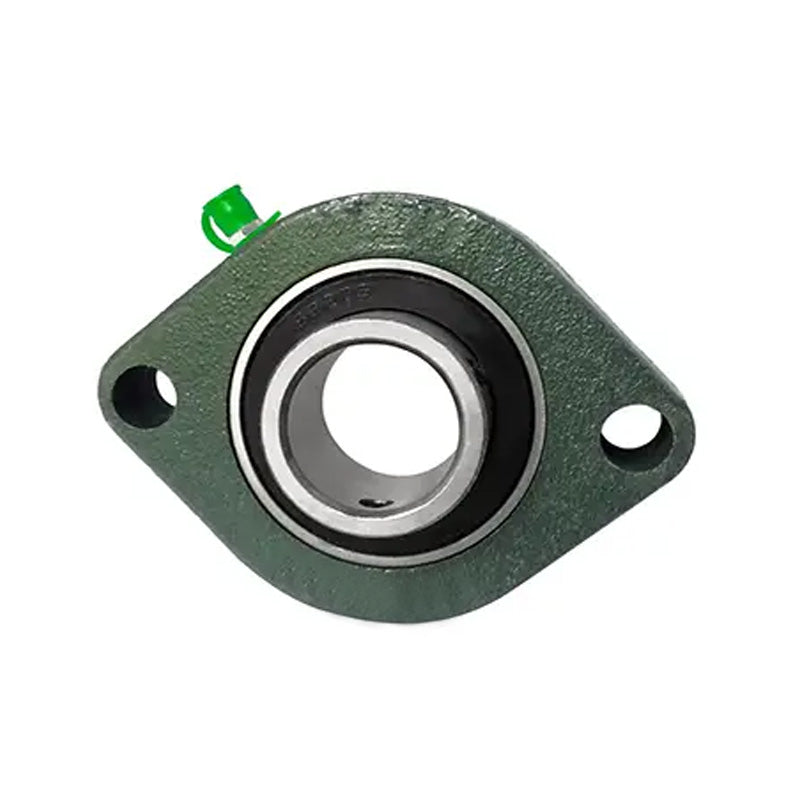

SBFD207-22 Imperial Two Bolt Cast Iron Oval Housing with 1-3/8 inch Bore
SBFD207-22 Imperial Two Bolt Cast Iron Oval Housing with 1-3/8 inch Bore
Regular price
£19.87
ex VAT£23.84inc. VAT
Regular price
Sale price
£19.87
ex VAT£23.84
inc. VAT
In stock
Price Break
3+
£17.68
4+
£16.69
9+
£16.49
19+
£16.29
49+
£16.09
99+
£15.89
499+
£14.90
999+
£14.70
1999+
£14.50
2999+
£14.30
4999+
£13.91
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 100.01mm = 3.937 (3-15/16) inch
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 4-59/64 inch |
| e | 3-15/16 inch |
| b | 3-45/64 inch |
| i | 1/2 inch |
| s | 15/32 inch |
| l | 7/8 inch |
| z | 1-27/64 inch |
| B1 | 1.2598 inch |
| n | 0.3346 inch |
| Bolt size | 3/8 inch |
| Bearing no | SB207-22 |
| Housing no | FD207 |
| Weight | 0.9 kg |
