SKU: SBFD205-16

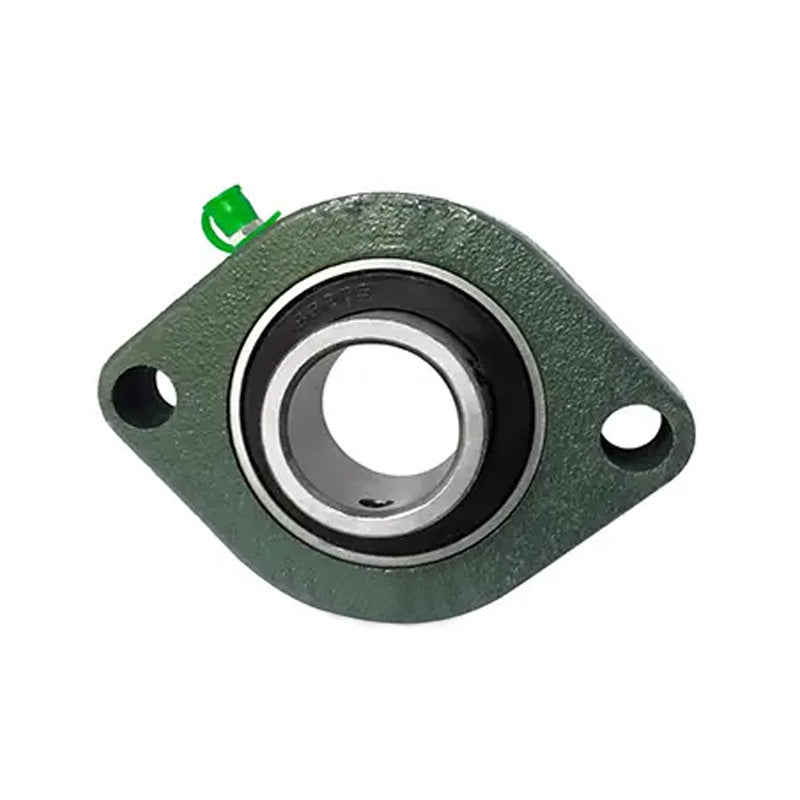

SBFD205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore
SBFD205-16 Imperial Two Bolt Cast Iron Oval Housing with 1 inch Bore
Regular price
£13.49
ex VAT£16.19inc. VAT
Regular price
Sale price
£13.49
ex VAT£16.19
inc. VAT
In stock
Price Break
3+
£12.01
4+
£11.34
9+
£11.20
19+
£11.07
49+
£10.93
99+
£10.80
499+
£10.12
999+
£9.99
1999+
£9.85
2999+
£9.72
4999+
£9.45
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SBFD
- Bolt Hole Centres:
- 75.8mm = 2.984 (2-63/64) inch
Technical
Technical
| d | 1 inch |
|---|---|
| a | 3-3/4 inch |
| e | 2-63/64 inch |
| b | 2-51/64 inch |
| i | 3/8 inch |
| s | 25/64 inch |
| l | 43/64 inch |
| z | 1-9/64 inch |
| B1 | 1.063 inch |
| n | 0.2953 inch |
| Bolt size | 5/16 inch |
| Bearing no | SB205-16 |
| Housing no | FD205 |
| Weight | 0.5 kg |
