SKU: SBFD205-13

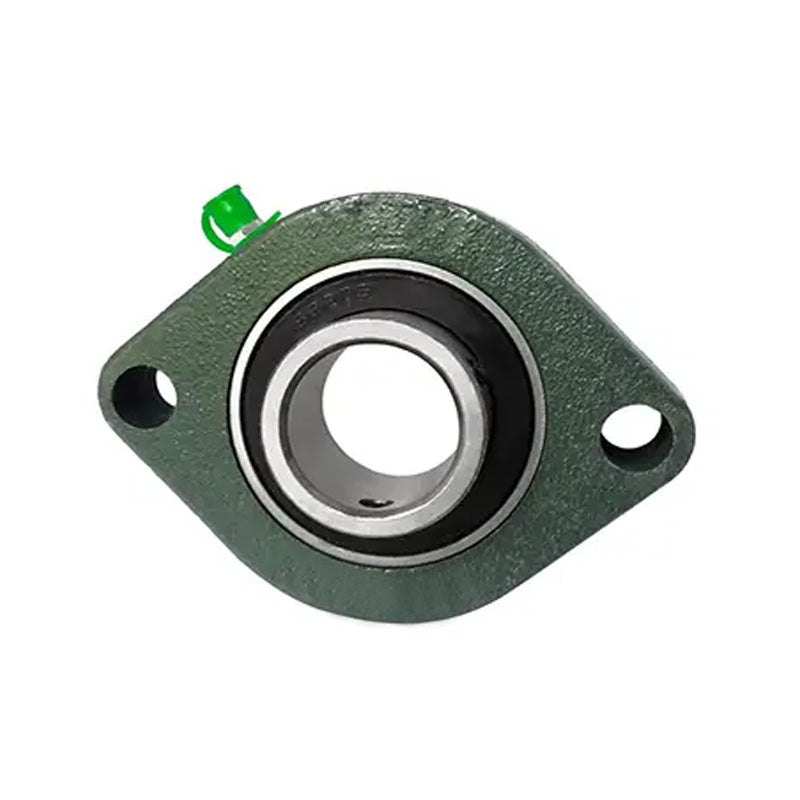

SBFD205-13 Imperial Two Bolt Cast Iron Oval Housing with 13/16 inch Bore - Allow 2-3 Days
SBFD205-13 Imperial Two Bolt Cast Iron Oval Housing with 13/16 inch Bore - Allow 2-3 Days
Regular price
£11.07
ex VAT£13.28inc. VAT
Regular price
Sale price
£11.07
ex VAT£13.28
inc. VAT
In stock
Price Break
3+
£10.96
4+
£10.52
9+
£10.30
19+
£9.96
49+
£9.74
99+
£9.19
499+
£7.75
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 75.8mm = 2.984 (2-63/64) inch
Technical
Technical
| d | 13/16 inch |
|---|---|
| a | 3-3/4 inch |
| e | 2-63/64 inch |
| b | 2-51/64 inch |
| i | 3/8 inch |
| s | 25/64 inch |
| l | 43/64 inch |
| z | 1-9/64 inch |
| B1 | 1.063 inch |
| n | 0.2953 inch |
| Bolt size | M8 |
| Bearing no | SB205-13 |
| Housing no | FD205 |
| Weight | 0.5 kg |
