SKU: SBFD205

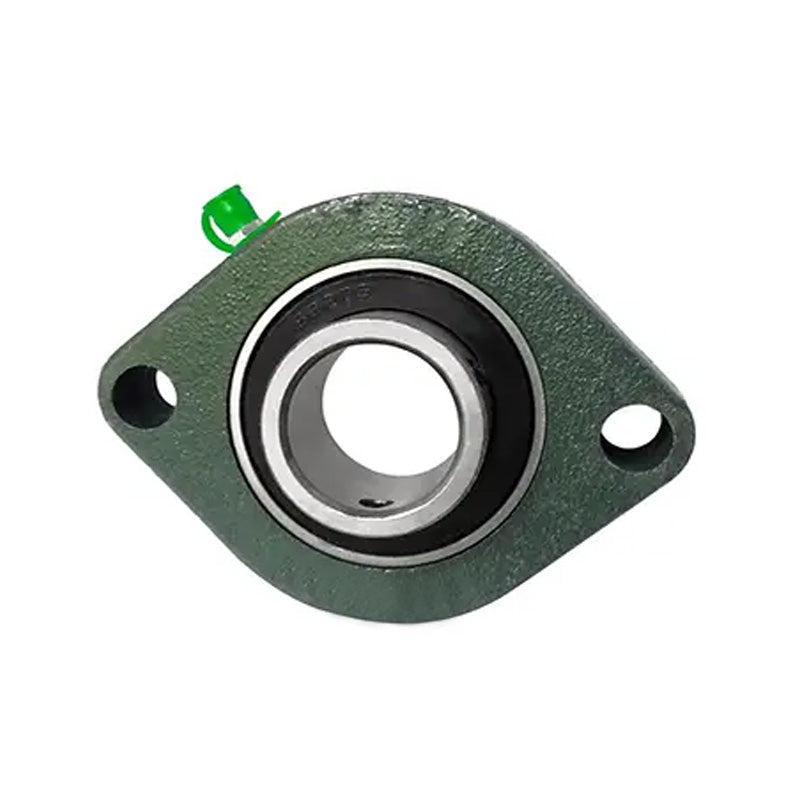

SBFD205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore
SBFD205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore
Regular price
£8.45
ex VAT£10.14inc. VAT
Regular price
Sale price
£8.45
ex VAT£10.14
inc. VAT
In stock
Price Break
3+
£7.52
4+
£7.10
9+
£7.01
19+
£6.93
49+
£6.84
99+
£6.76
499+
£6.34
999+
£6.25
1999+
£6.17
2999+
£6.08
4999+
£5.92
Share this product
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- SBFD
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 95mm |
| e | 76mm |
| b | 71mm |
| i | 9.5mm |
| s | 10mm |
| l | 17mm |
| z | 29mm |
| B1 | 27mm |
| n | 7.5mm |
| Bolt size | M8 |
| Bearing no | SB205 |
| Housing no | FD205 |
| Weight | 0.5 kg |
