SKU: SBFD201

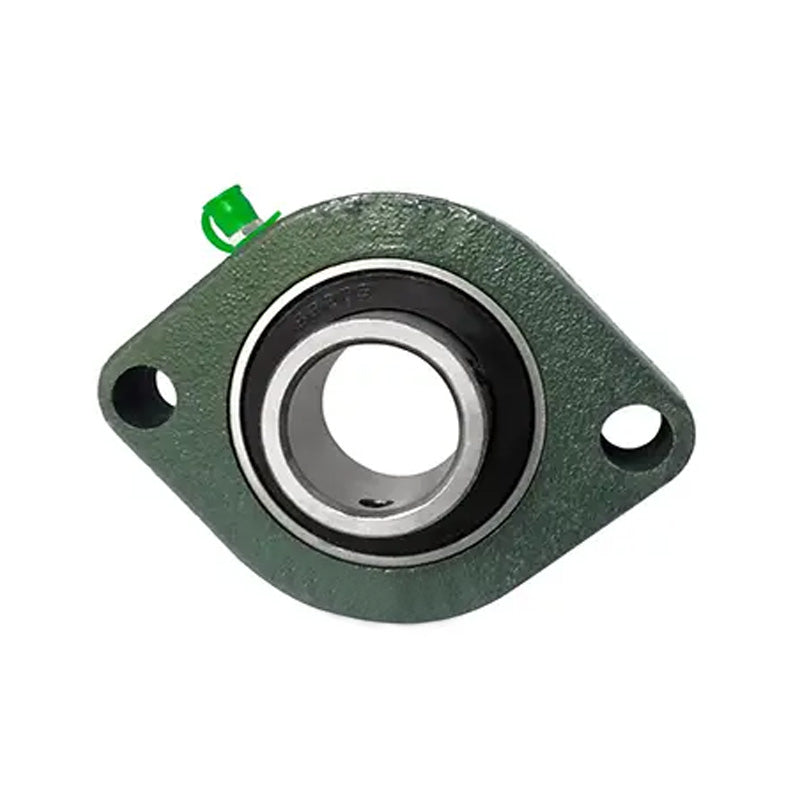

SBFD201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore
SBFD201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore
Regular price
£11.03
ex VAT£13.24inc. VAT
Regular price
Sale price
£11.03
ex VAT£13.24
inc. VAT
In stock
Price Break
3+
£9.82
4+
£9.27
9+
£9.16
19+
£9.05
49+
£8.94
99+
£8.83
499+
£8.27
999+
£8.16
1999+
£8.05
2999+
£7.94
4999+
£7.72
Share this product
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SBFD
- Bolt Hole Centres:
- 63mm
Technical
Technical
| d | 12mm |
|---|---|
| a | 81mm |
| e | 63mm |
| b | 59mm |
| i | 8.5mm |
| s | 7mm |
| l | 15mm |
| z | 24mm |
| B1 | 22mm |
| n | 6mm |
| Bolt size | M6 |
| Bearing no | SB201 |
| Housing no | FD203 |
| Weight | 0.3 kg |
