SKU: SB.211-32

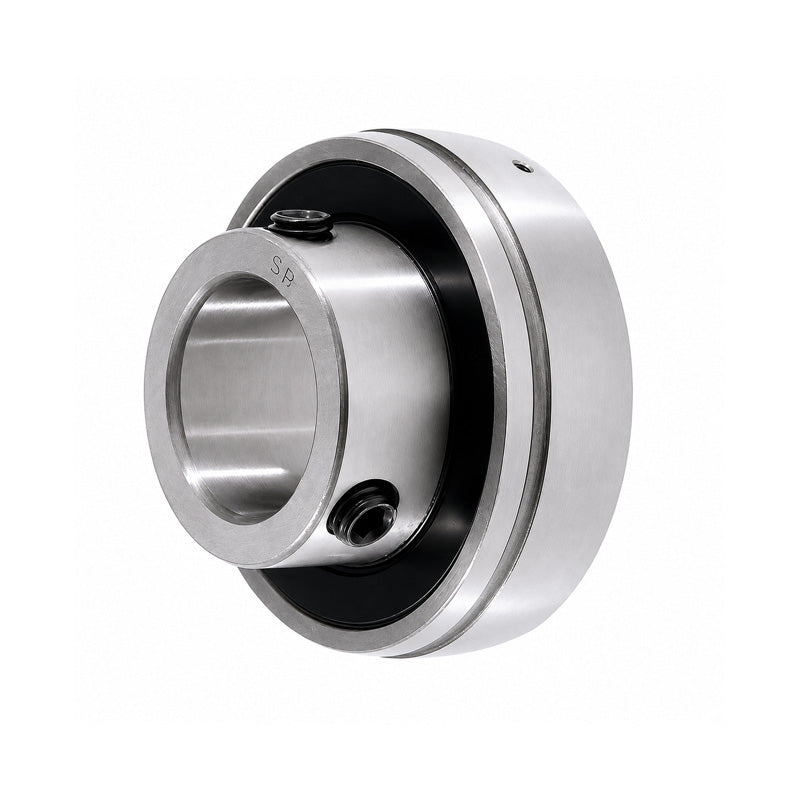

SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
SB211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Regular price
£19.22
ex VAT£23.06inc. VAT
Regular price
Sale price
£19.22
ex VAT£23.06
inc. VAT
In stock
Price Break
3+
£17.10
4+
£16.14
9+
£15.95
19+
£15.76
49+
£15.57
99+
£15.37
499+
£14.41
999+
£14.22
1999+
£14.03
2999+
£13.84
4999+
£13.45
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- SB
Technical
Technical
| d | 2 inch |
|---|---|
| Be | 23mm |
| D | 100mm |
| Bi | 45.3mm |
| n | 11.8mm |
| m | 33.5mm |
| G | 9.8mm |
| h | 7.2mm |
| Grub screw | 5/16-24 UNF |
| Weight | 1.1 kg |
| Dynamic load | 4400 kgf |
| Static load | 2960 kgf |
